Sustainable city –
the Copenhagen way

Year: First prize in competition 2008, on-going, under construction

Client: CPH City & Port Development

Program: Masterplan for new city district in former industrial harbour area, including development plan, district plans, design of public spaces, streetscapes and promenades, landscaping, bicycle infrastructure and metro stations

Size: 3.6m m²

Future environmental challenges must be solved through a sustainable approach to city planning. The transformation of Nordhavn (North Harbour) – the largest metropolitan development in northern Europe – continues Copenhagen’s historic strategy of a step-by-step expansion into the surrounding sea. The new Nordhavn is conceived as an urban archipelago or a series of dense neighborhoods on the water. Planning one island at a time, the Nordhavn master plan is not an ideal city vision, specifying every last detail, but rather a robust and flexible guideline intended to inspire future generations of urban planners. It is a way of addressing one of the great challenges of city planning: Designing for the needs and demands of today while trying to predict and address the major environmental challenges shaping our future. As the first DGNB platinum-certified urban area in Denmark, the Nordhavn project takes a holistic approach to urban planning.

cobe nordhavn history

The Free Port in 1904: Thousands of barrels of various commodities have been packed and are waiting to be loaded.

In just 40 years, Nordhavn will become a vibrant waterfront city, providing homes for 40,000 inhabitants and workspaces for another 40,000.

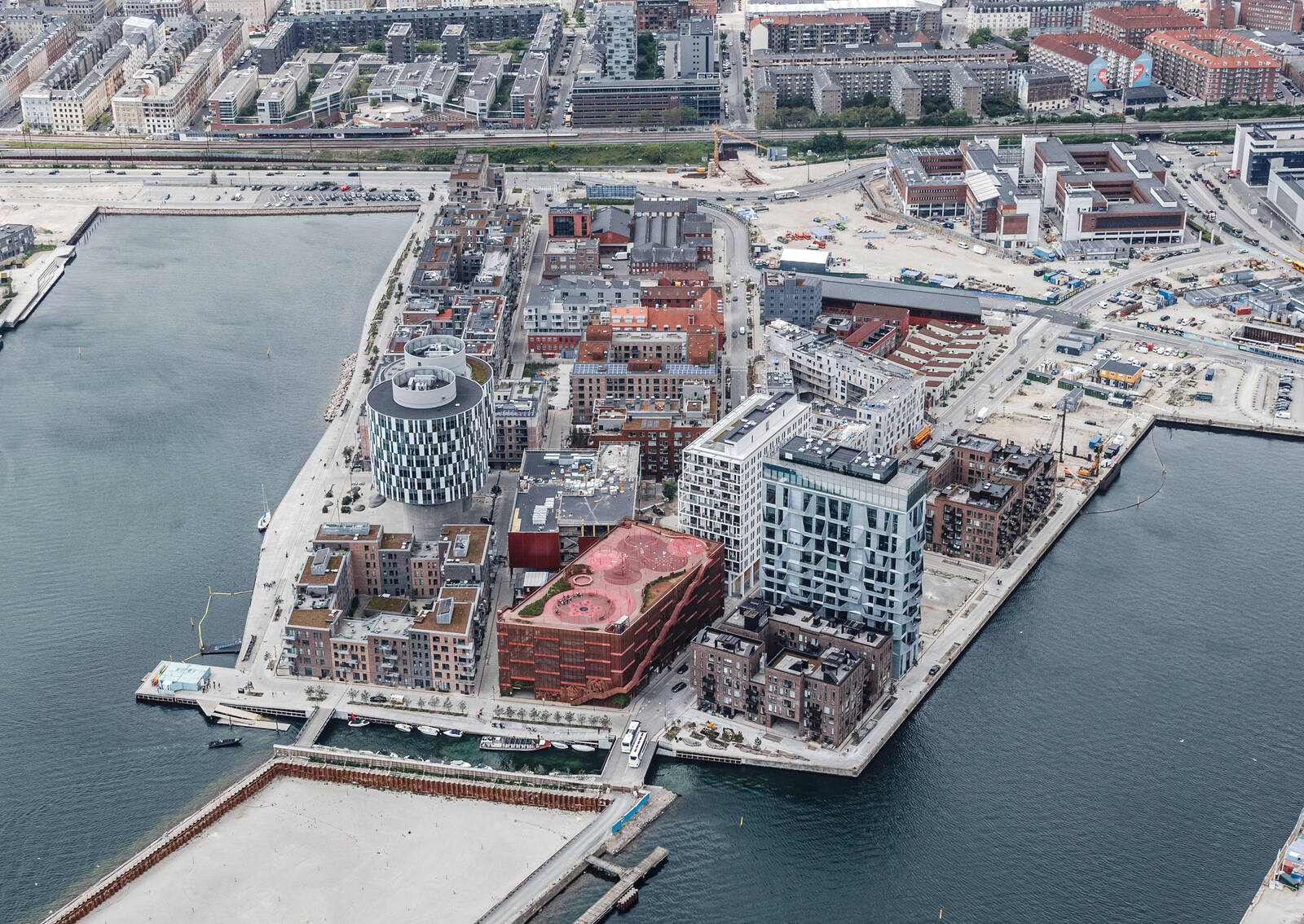

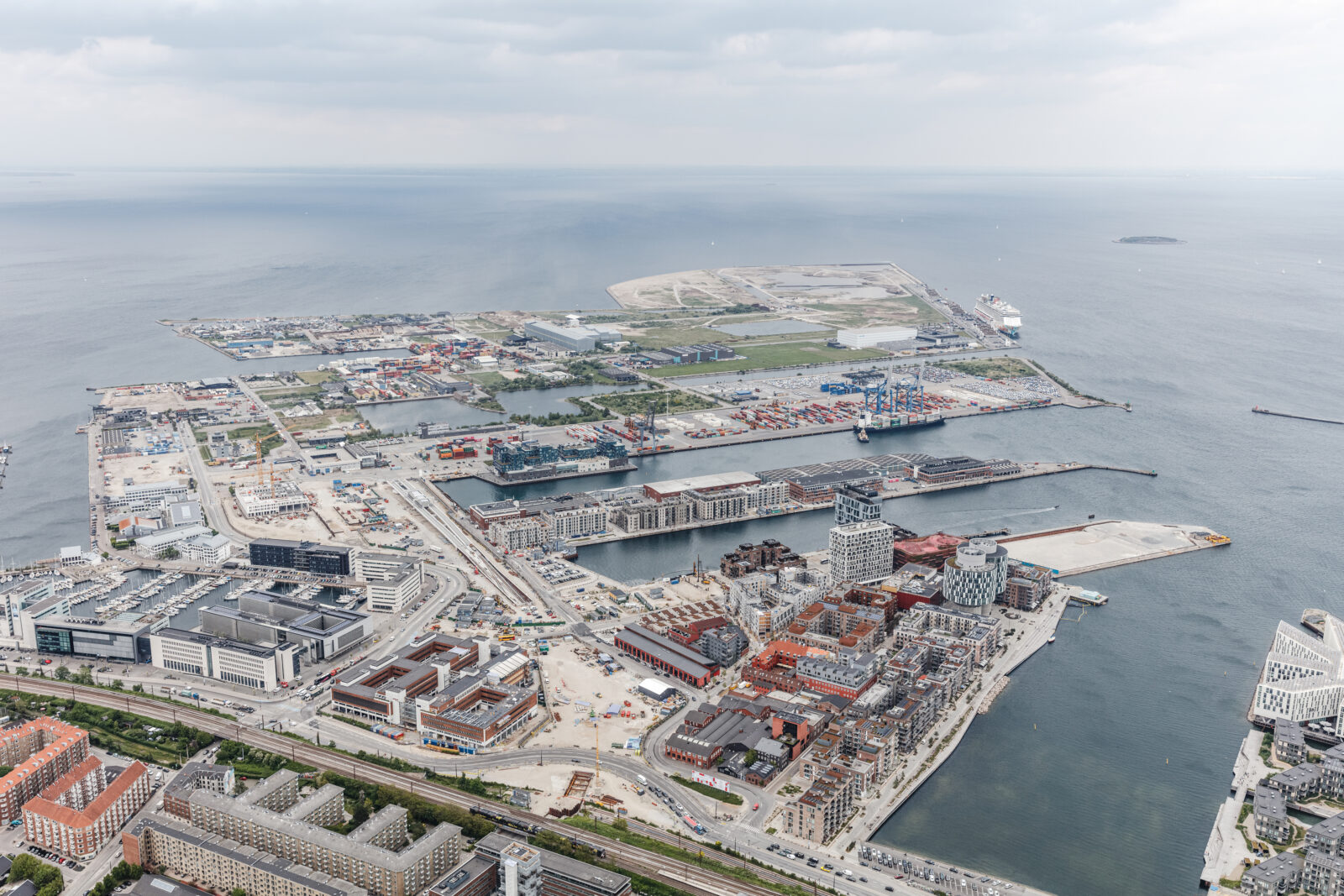

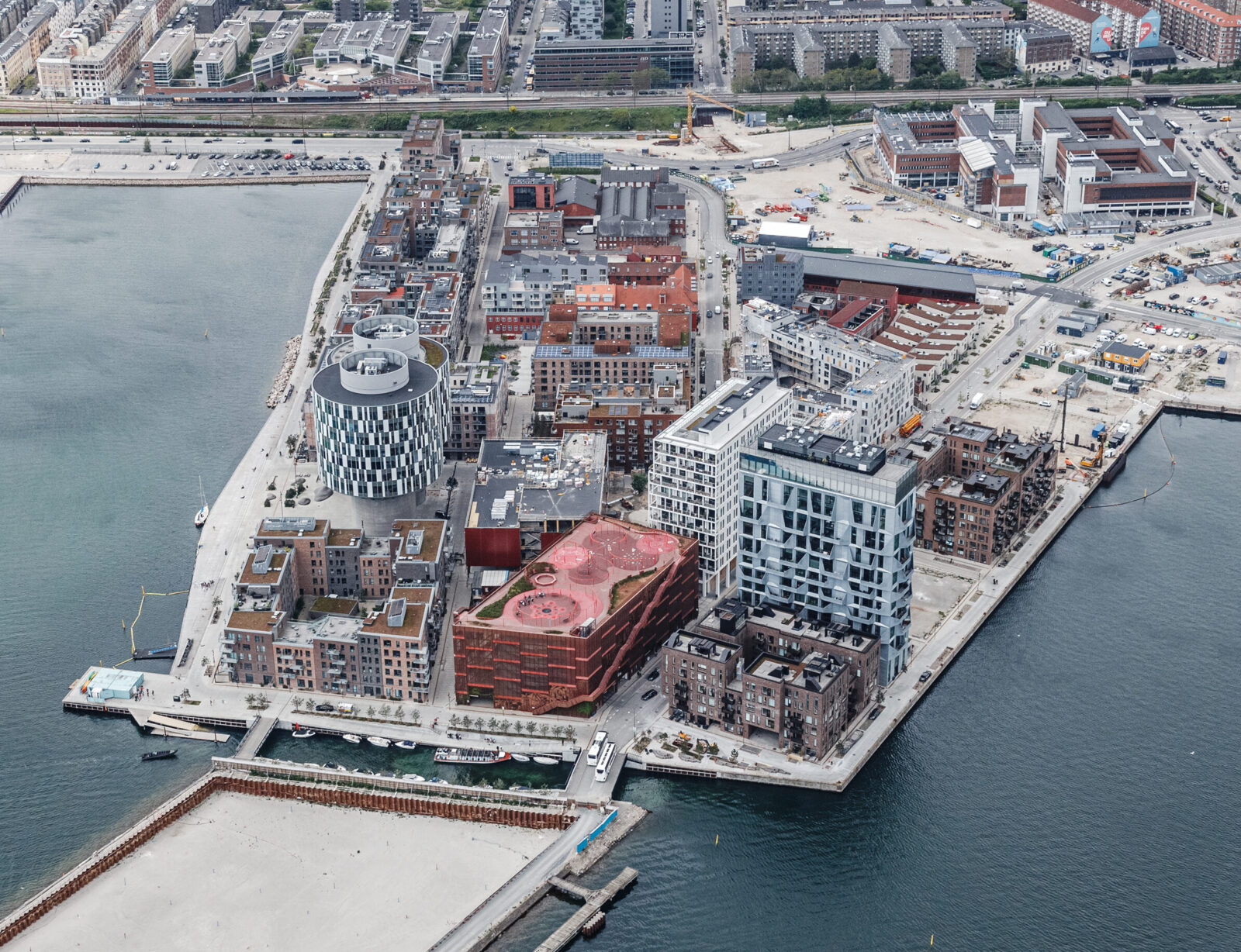

cobe nordhavn exterior view
From industry to
livable city

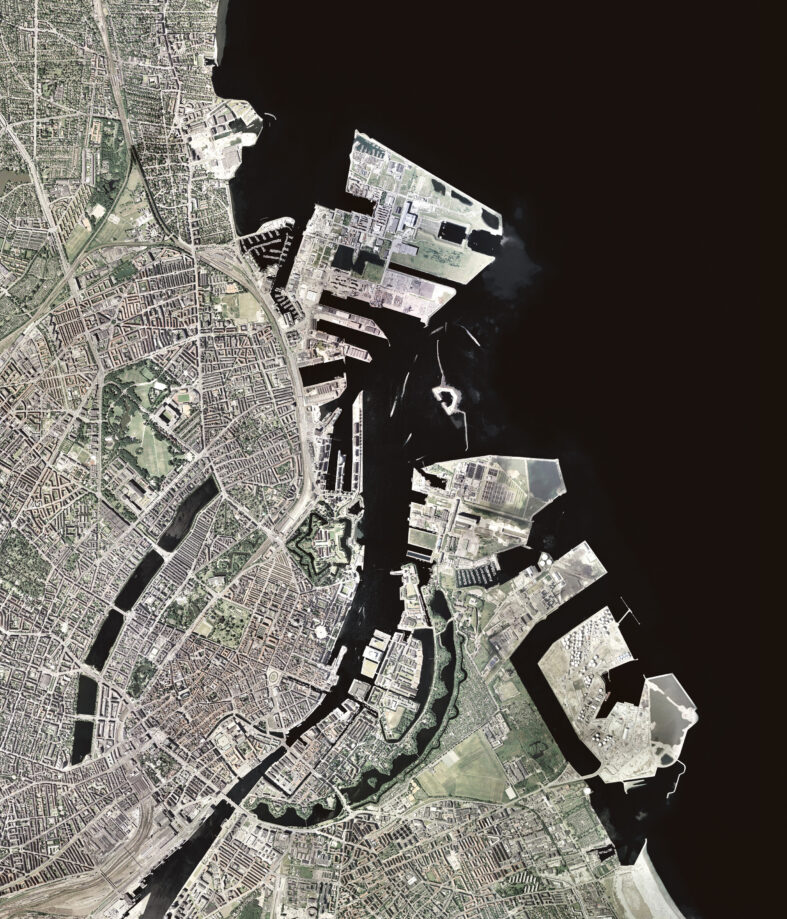

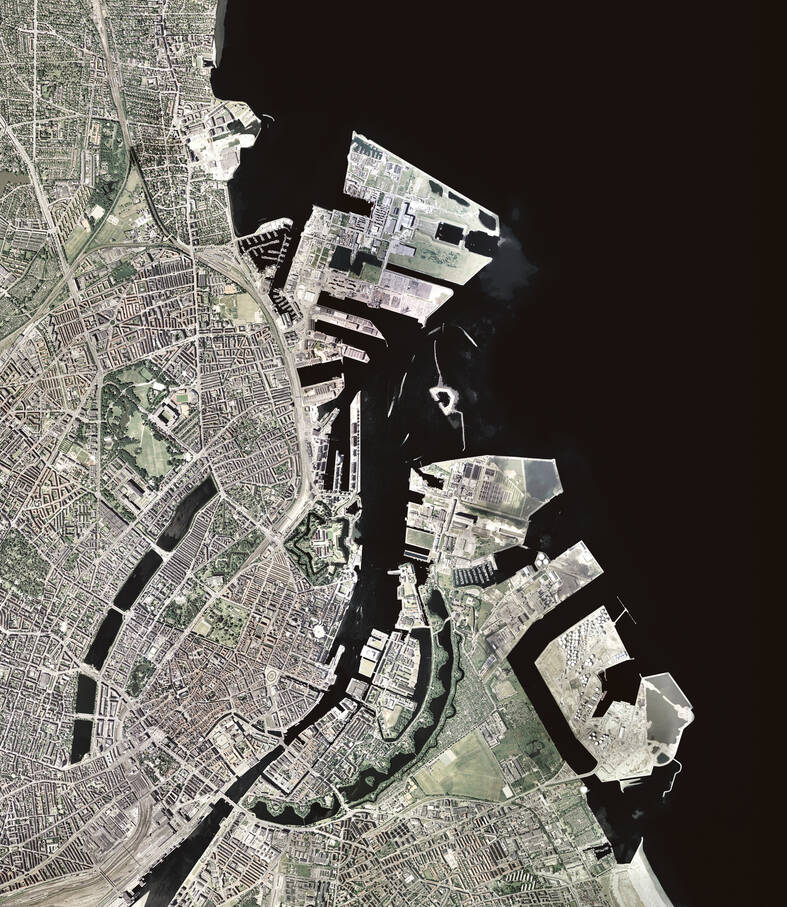

cobe nordhavn satellite view

Nordhavn as it looked before the extension began in 2008.

cobe nordhavn satellite view

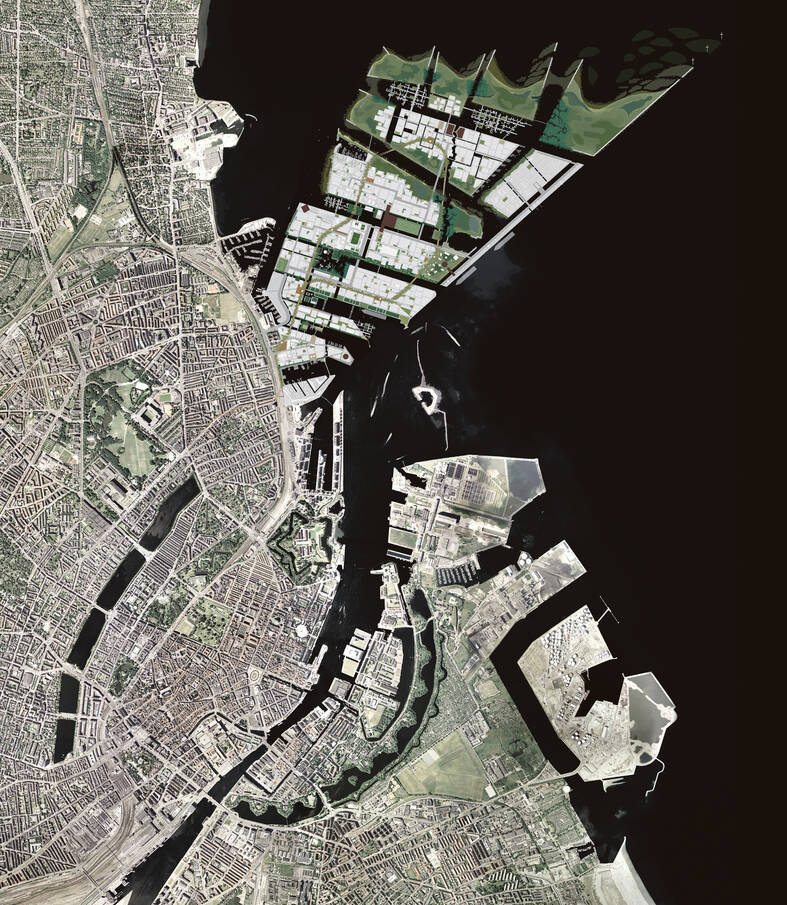

Nordhavn as it will look when fully expanded.

From industrial crisis to post-industrial wonderland: How do we reuse and redevelop leftover industrial spaces on an urban scale?

cobe nordhavn map project diagram

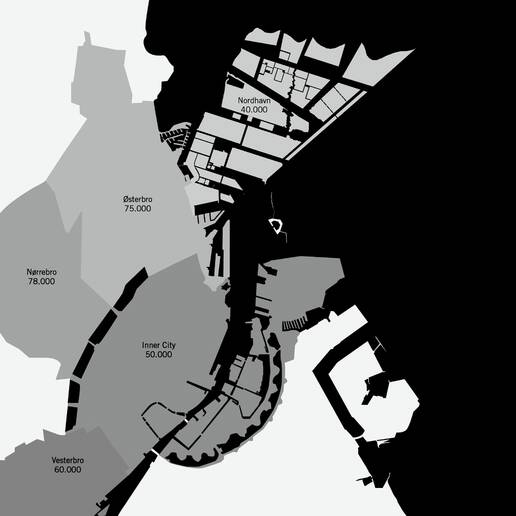

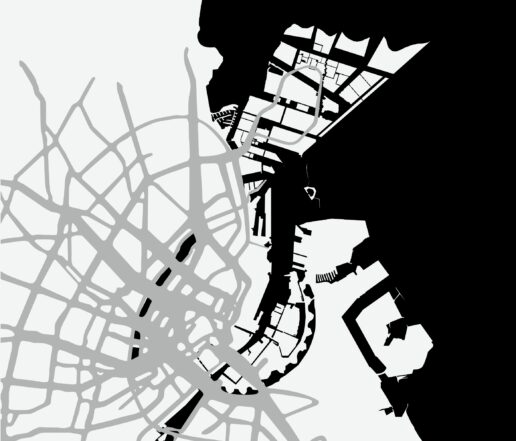

Nordhavn will match the size of other Copenhagen districts.

cobe nordhavn map project diagram

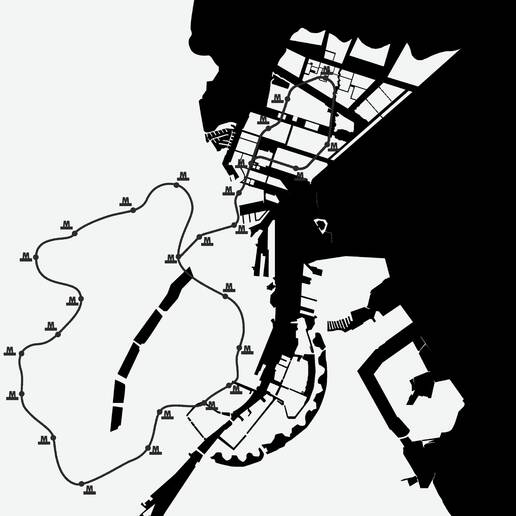

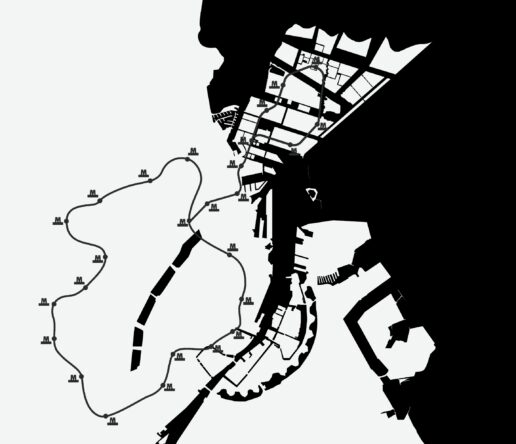

An extra loop on the Metro city ring will connect Nordhavn with the city centre.

cobe nordhavn map project diagram

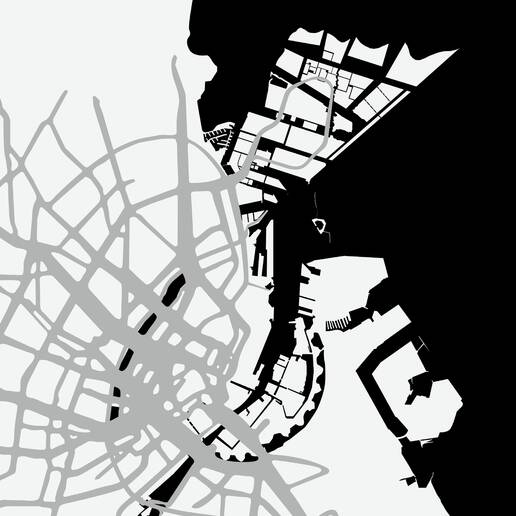

Connected to the public transportation loop is a green corridor for bikes, which connects Nordhavn to the larger biking network of the city.

cobe nordhavn map project diagram

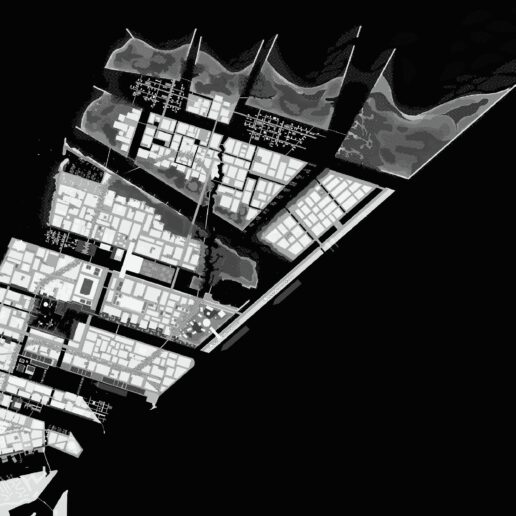

The structure plan from the winning 2008 competition proposal is the basis of the continuous development of the master plan. The plan envisions Nordhavn as an urban archipelago of small islands connected by pedestrian infrastructure and green elements.

cobe nordhavn inner before

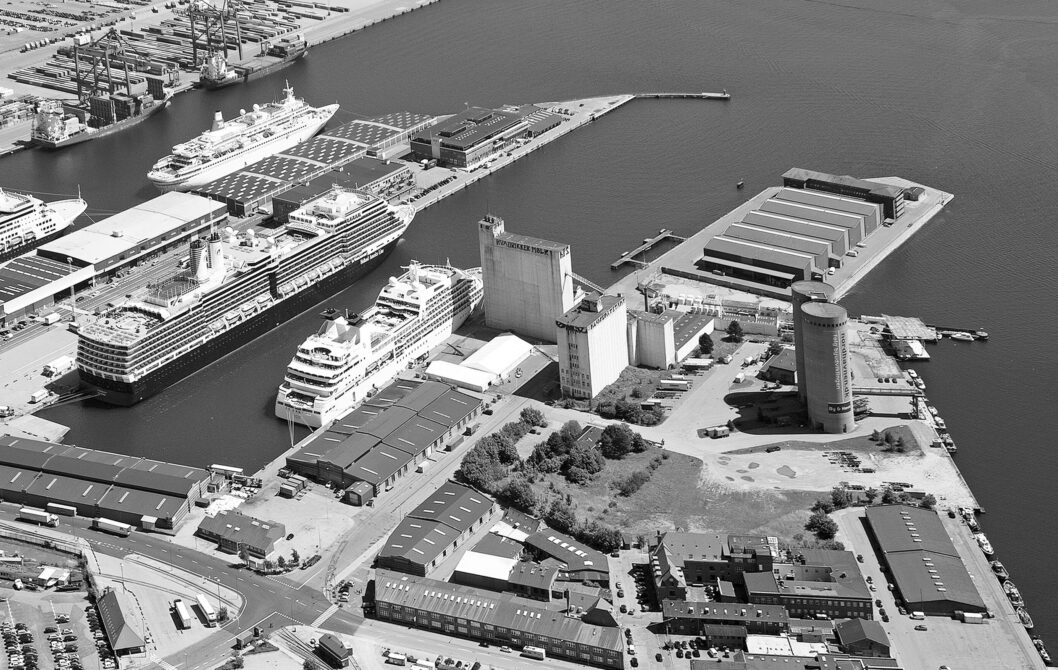

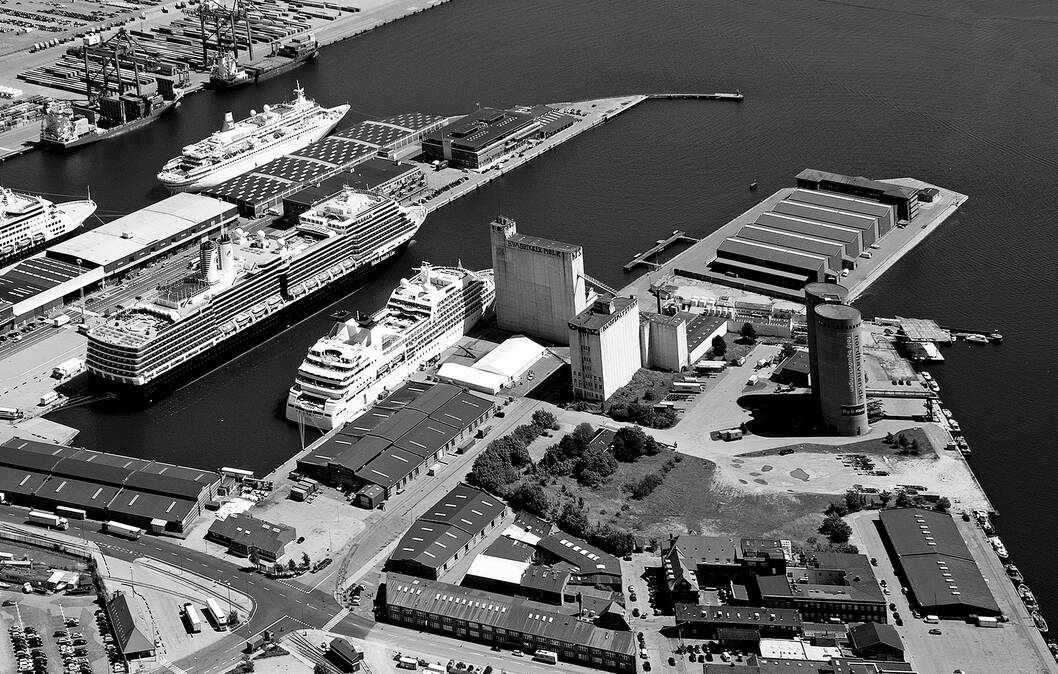

Inner Nordhavn, 2012.

cobe nordhavn inner after

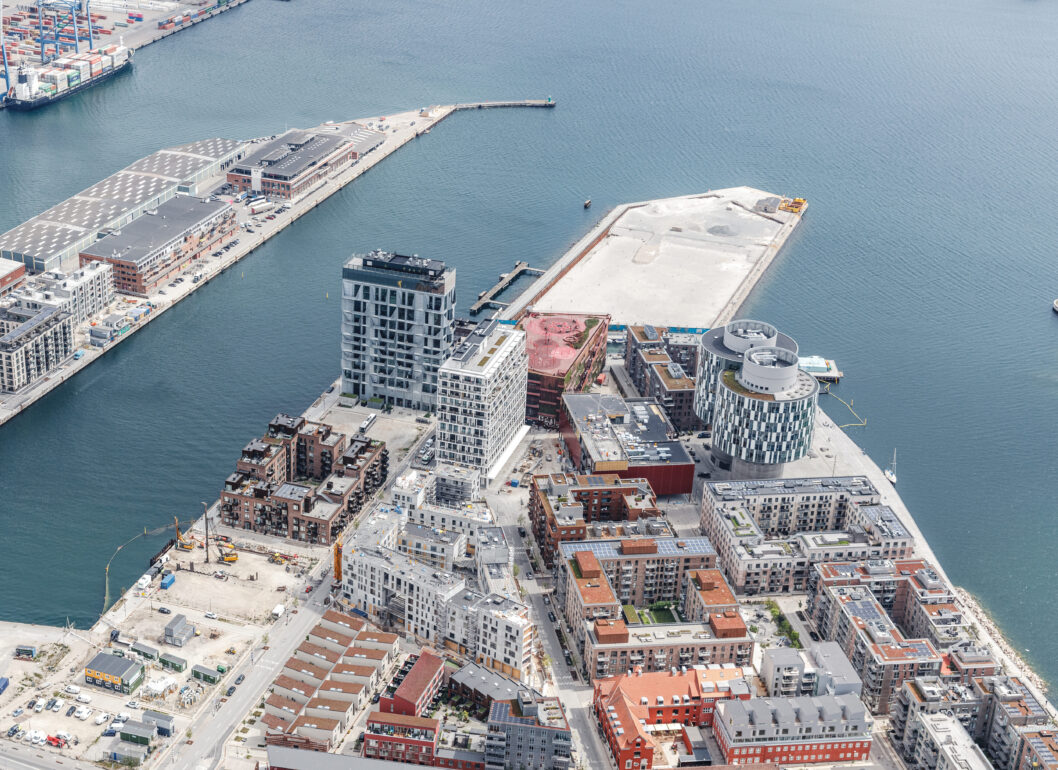

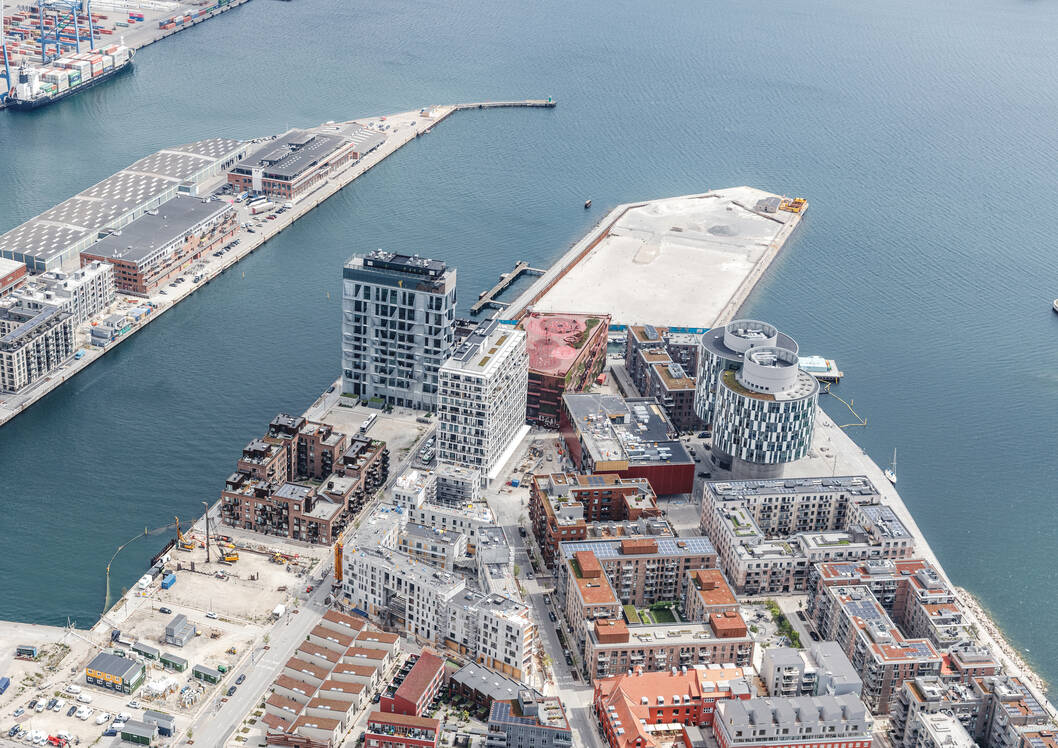

Inner Nordhavn, 2020.

Like many other industries, the cargo ships have moved out of the inner harbour. In their place, a neighborhood for people is emerging on the water, adding a new chapter to the story of the Copenhagen harbour front.

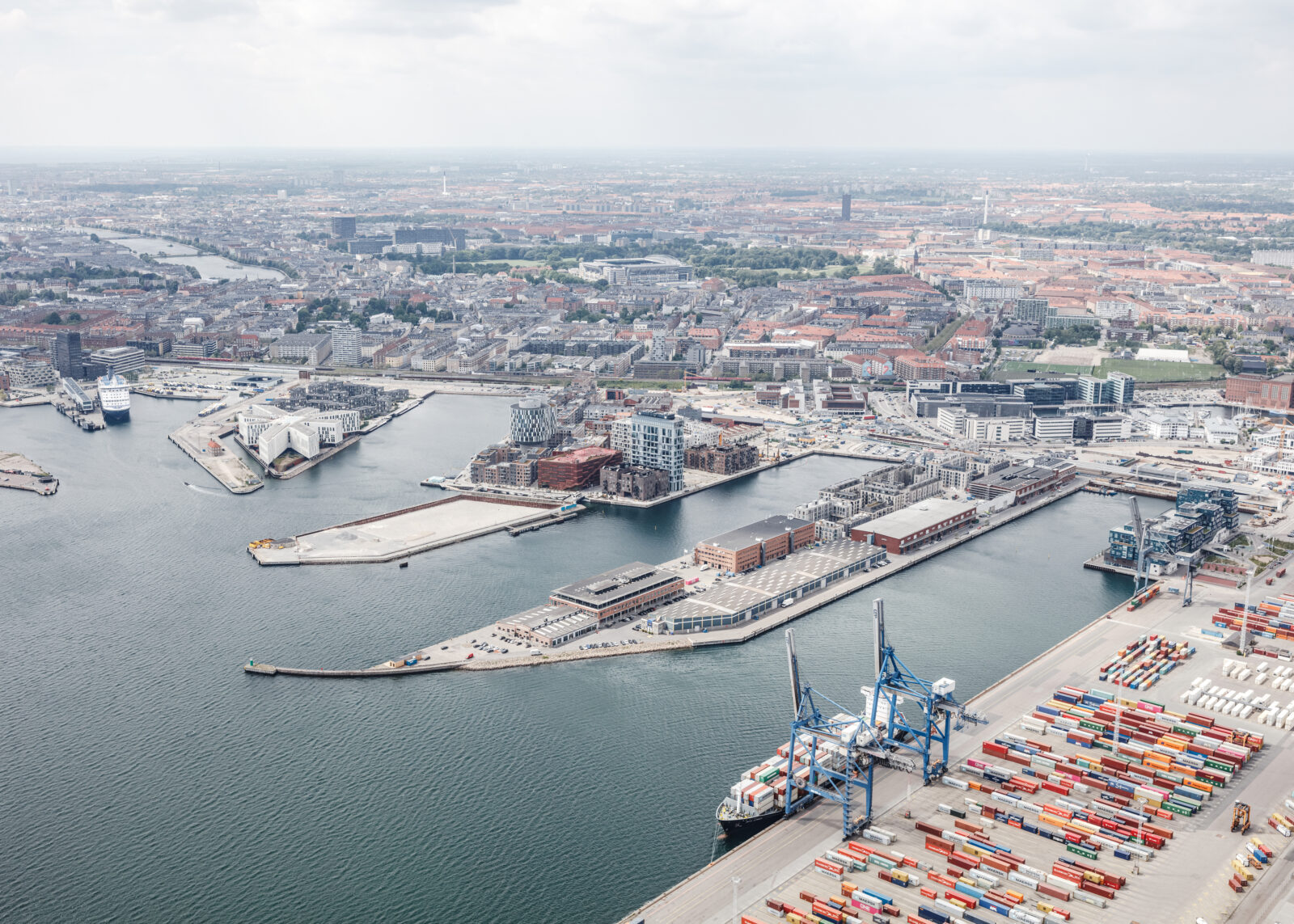

cobe nordhavn panoramic view containers

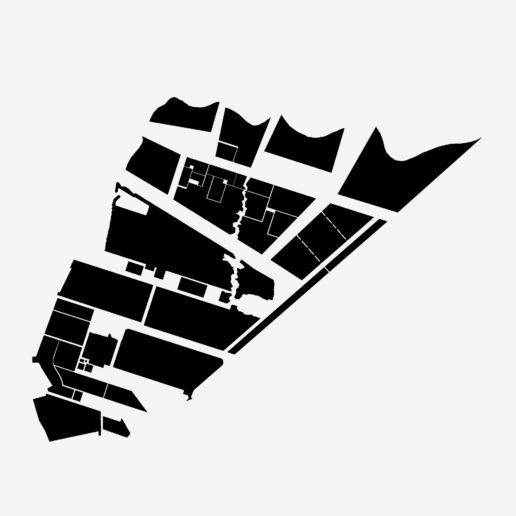

cobe nordhavn diagram

Islets and neighborhoods.

The site is divided into islets that create distinct identities and neighborhoods and facilitate robust and flexible planning tools.

cobe nordhavn diagram

The harbour and cultural heritage.

The industrial grid and existing buildings are integrated points of departure for the new development.

cobe nordhavn diagram

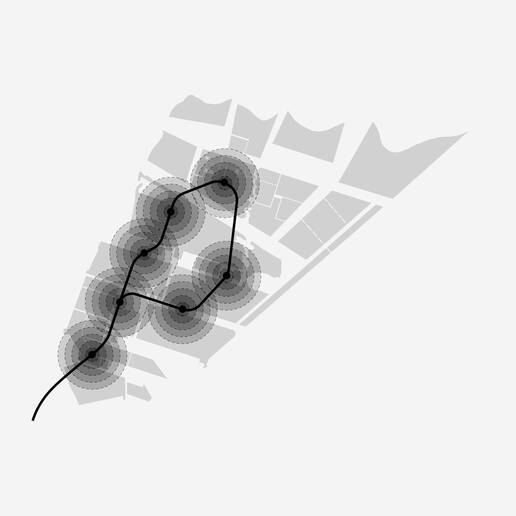

The green loop – five-minute city.

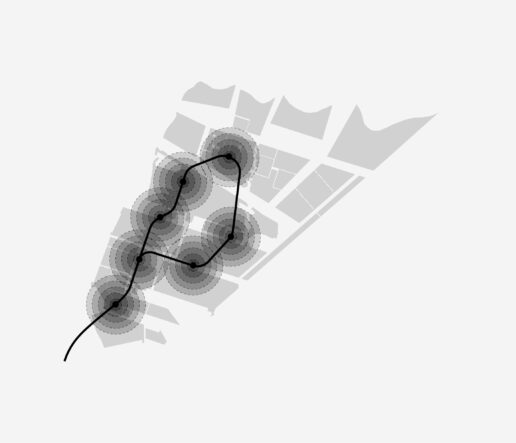

Transport is addressed as a clearly visible and distinctive element as well as a recreational space. The green Metro and bicycle loop connects the islets and makes for an integrated city. Every corner of the island is envisioned to have less than a five-minute walk to public transportation.

cobe nordhavn diagram

The city on the water.

Along with the green strips, new canals will be dug to enhance access and proximity to the water. The planning of blue and green city qualities precedes the planning of buildings.

cobe nordhavn diagram

The urban green.

Strips of green spaces run from east to west. Moving through these sections is experienced as a diverse and varied journey. The public spaces vary from “urban green” in the south to “natural green” in the north.

cobe nordhavn diagram

The intelligent grid.

The intelligent grid makes room for multiple mixed functions within a given area. The grid can adapt to changes over time and gives the plan a great deal of controlled flexibility. The variation of lots makes for a diverse city.

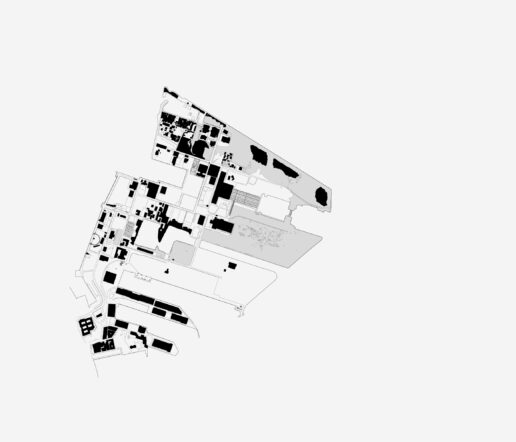

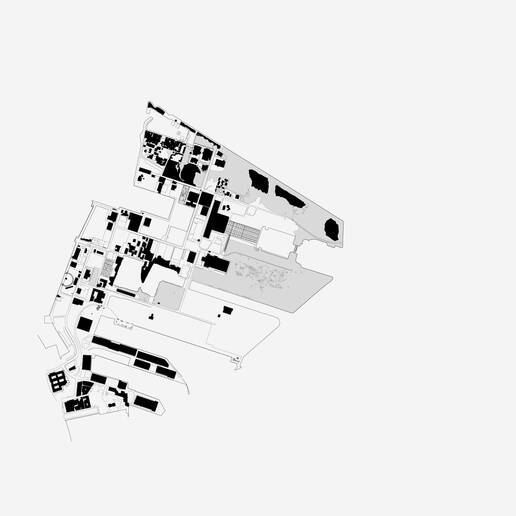

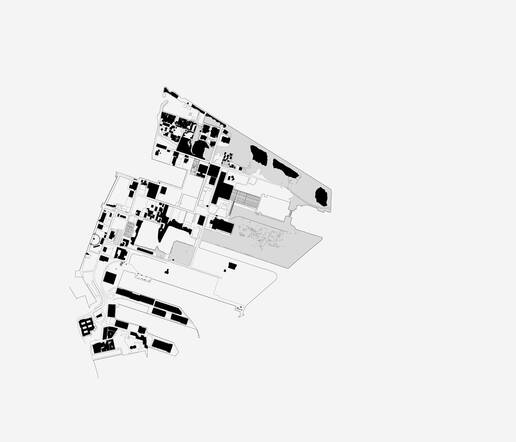

The main structural concept is to break the harbour space up into intersecting canals and basins by creating islets of various sizes. This layout respects and interprets Nordhavn’s past, in which reclaimed land areas created an easily recognizable, rational structure. Nordhavn will be surrounded and intersected by water, which will lend the district a distinctive character and subdivide it into local districts.

cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif cobe nordhavn gif

The division of Nordhavn into islets makes it easy to stage the development, with development taking place islet by islet and thus preventing urban sprawl. Future generations will have the opportunity to influence the architecture on the individual islets over time,” says Dan Stubbergaard, architect and founder of Cobe.

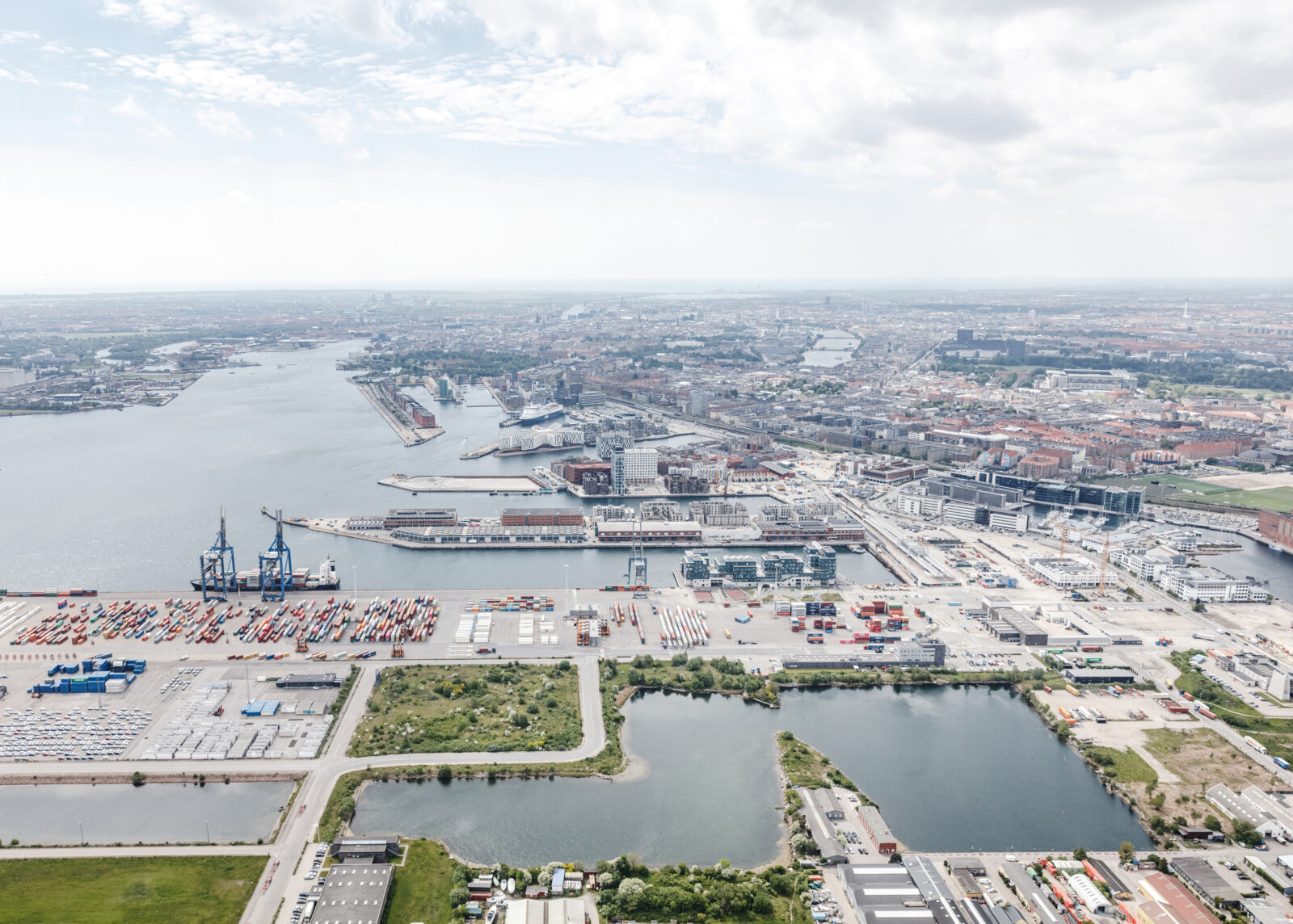

cobe nordhavn exterior green

The planning of Nordhavn incorporates the necessary and the extraordinary in the long-standing coexistence between old and new and allows the existing potential to become a launch pad for the area’s future architectural identity.

cobe nordhavn diagram

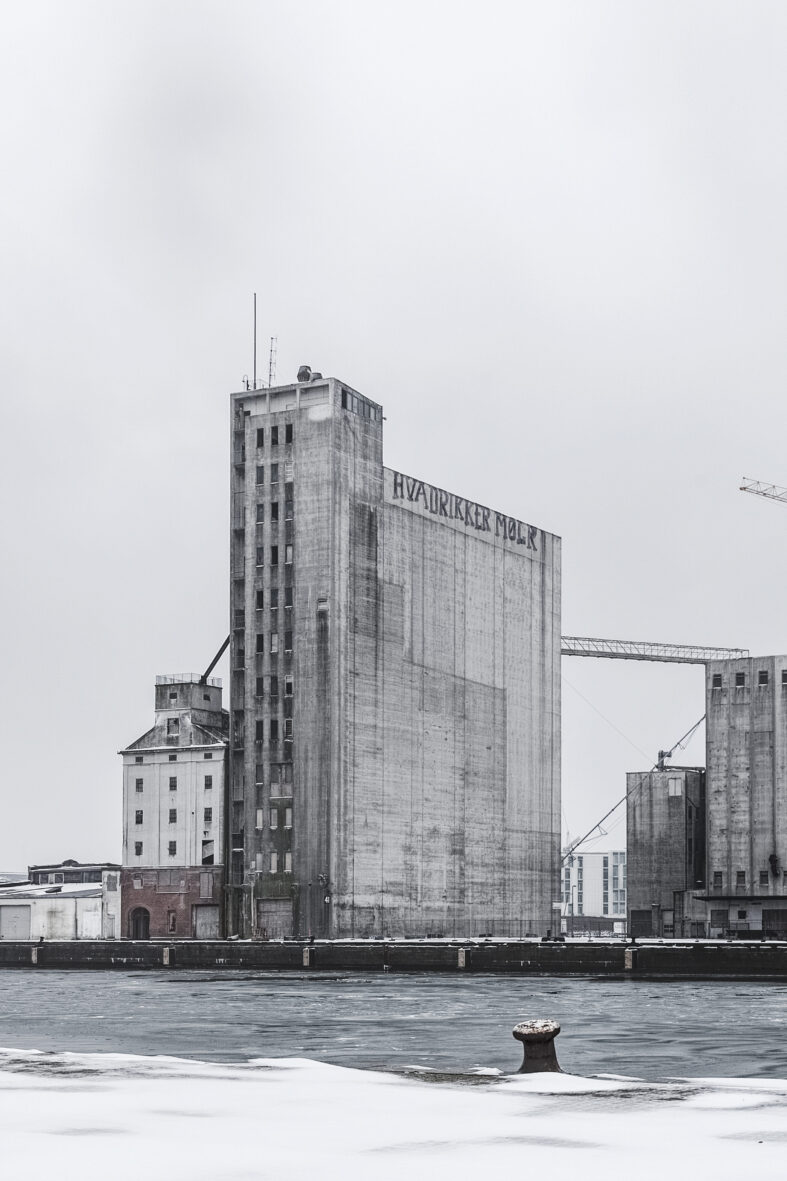

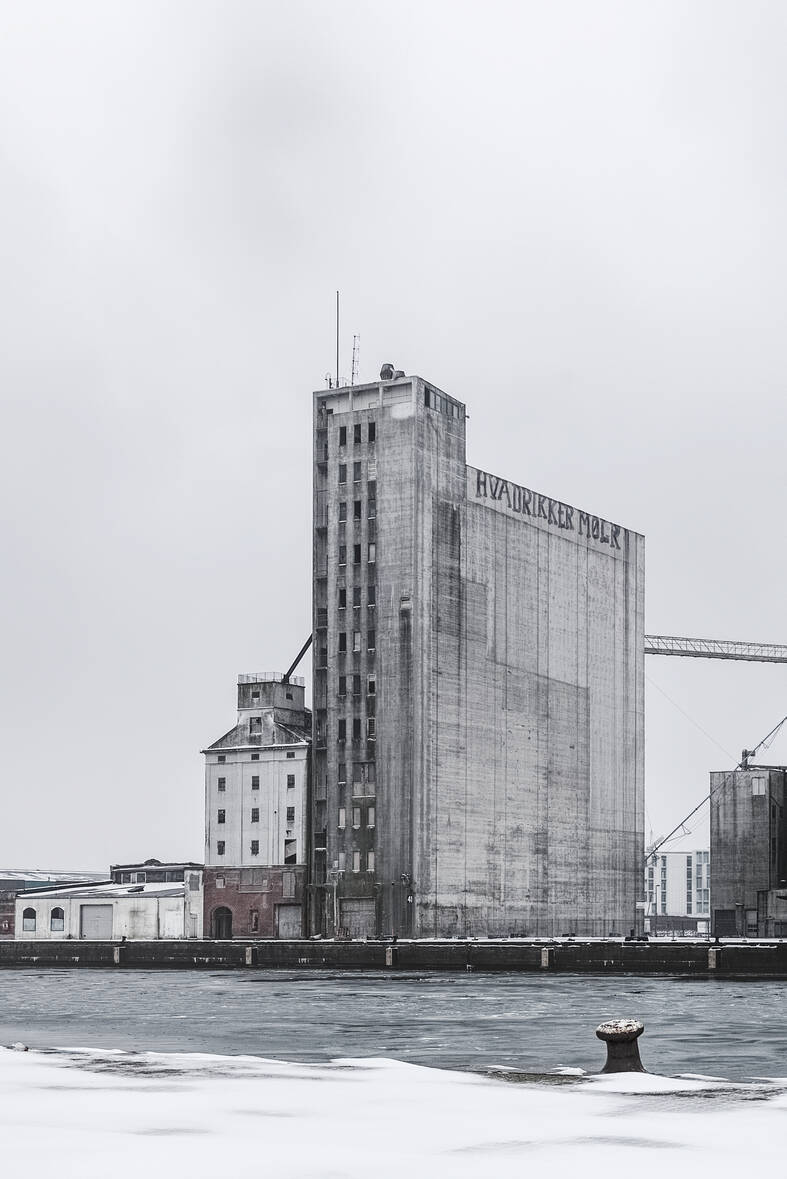

cobe nordhavn silo before

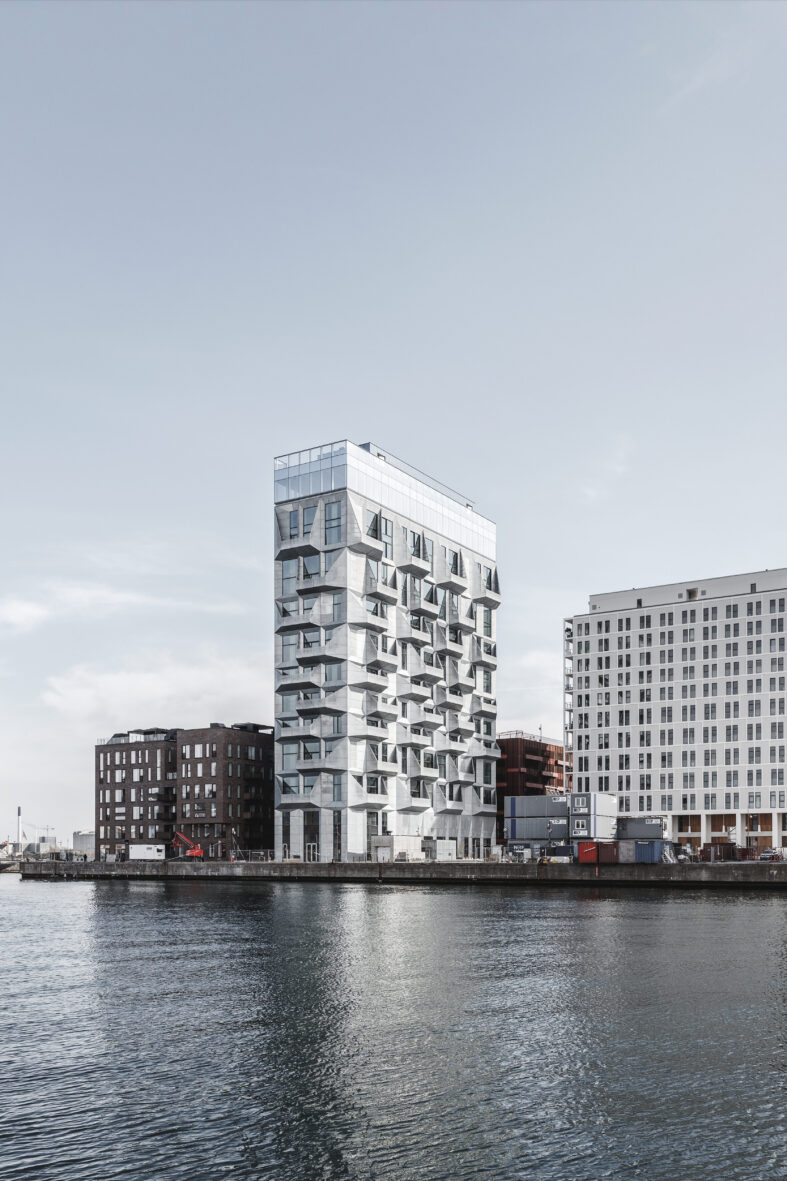

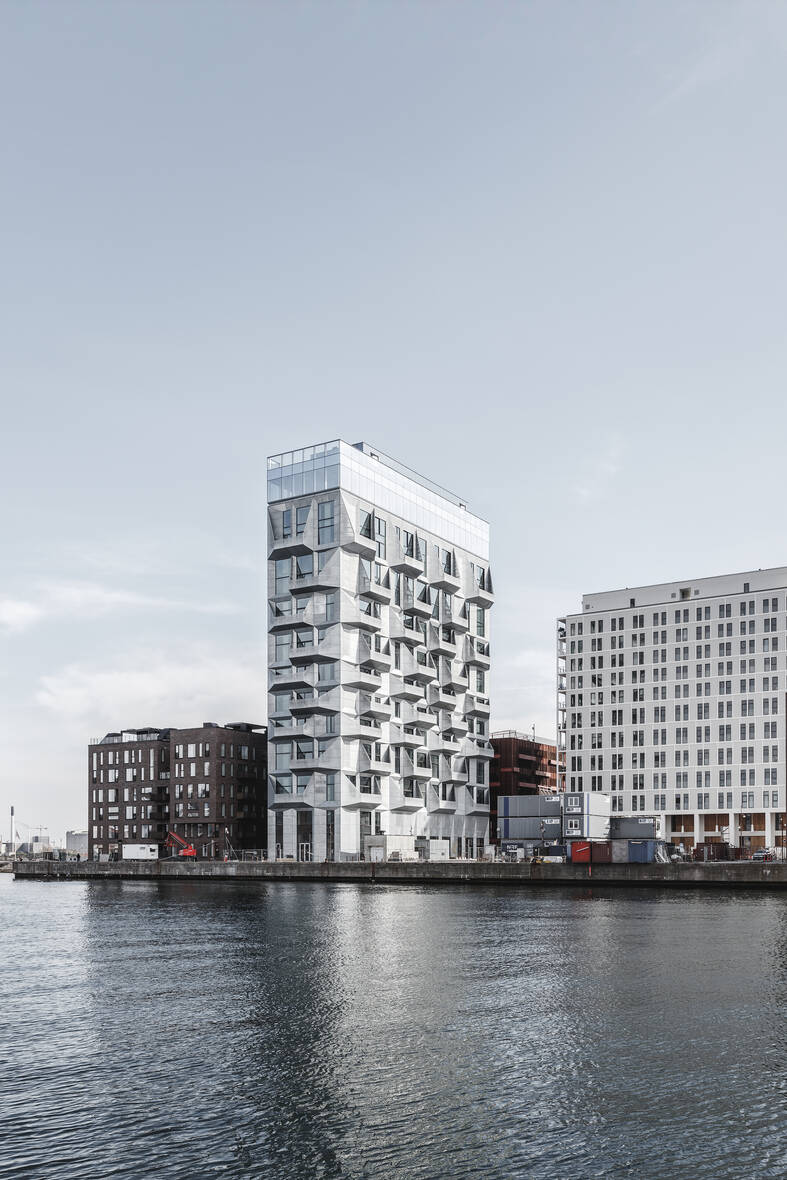

cobe nordhavn silo after

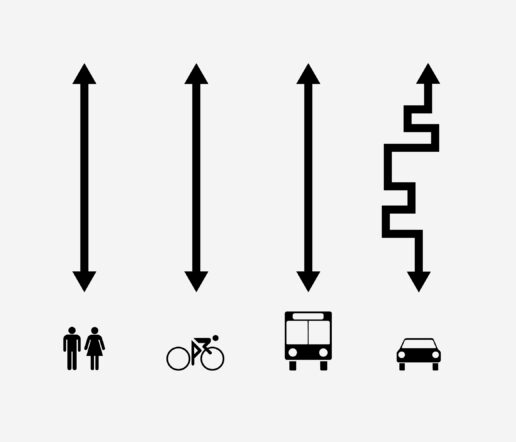

Nordhavn is a city of sustainable mobility, where it is easier to walk, bike or use public transport than it is to drive. The green loop is an expressway for bikes, connecting the individual neighborhoods with each other and with the rest of Copenhagen.

cobe nordhavn diagram
cobe nordhavn diagram

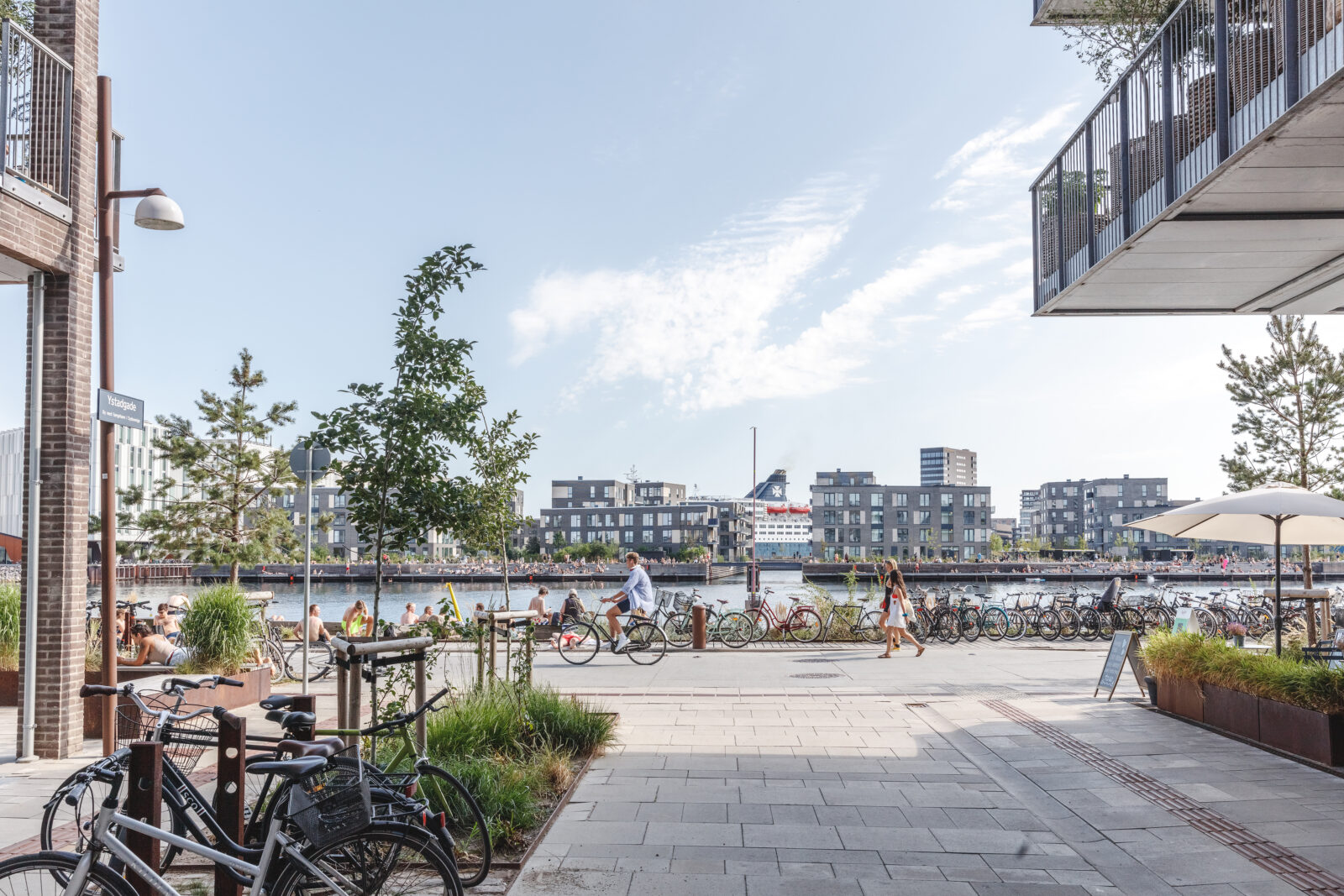

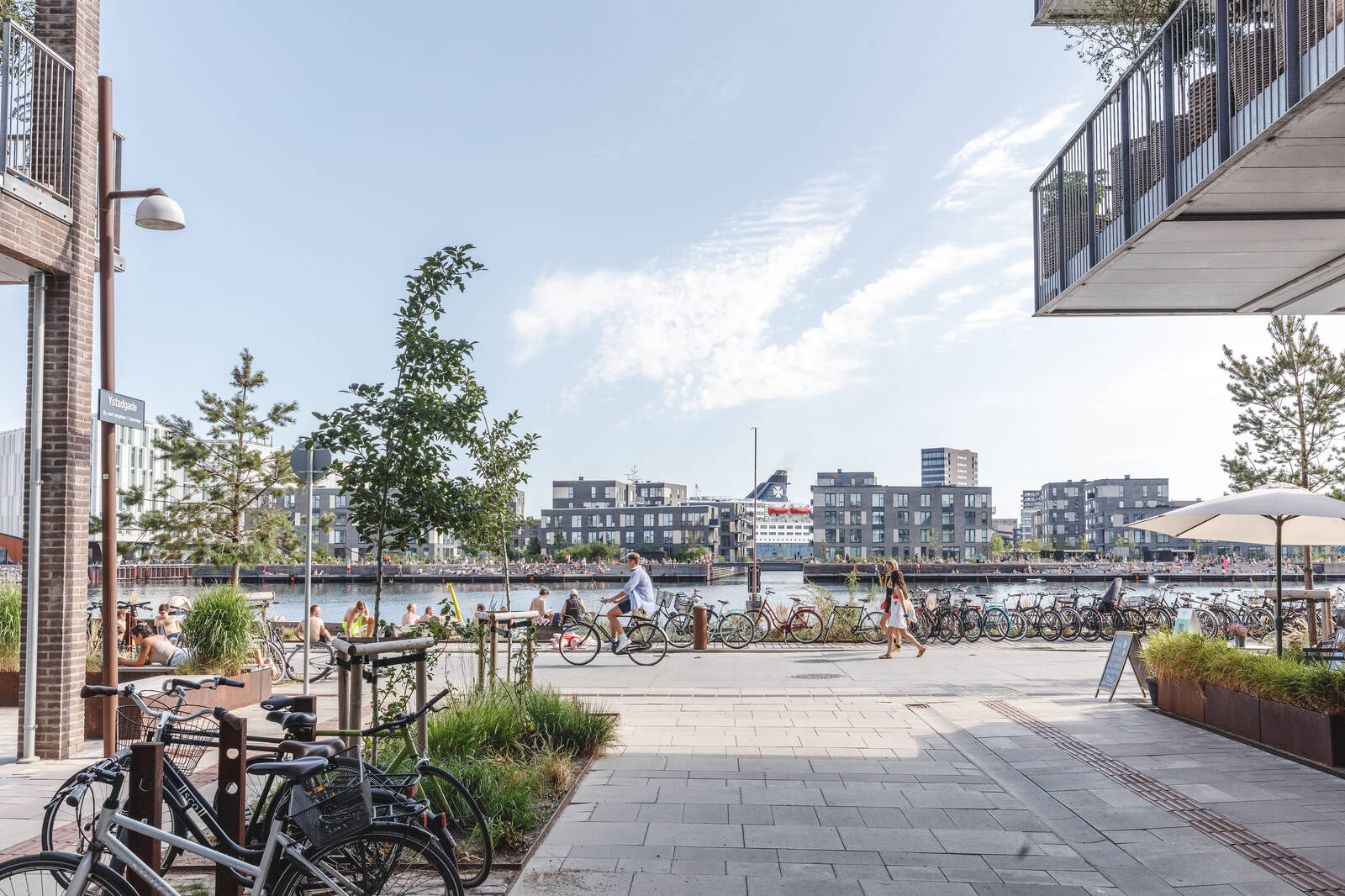

cobe nordhavn dock bikes
cobe nordhavn constructions school

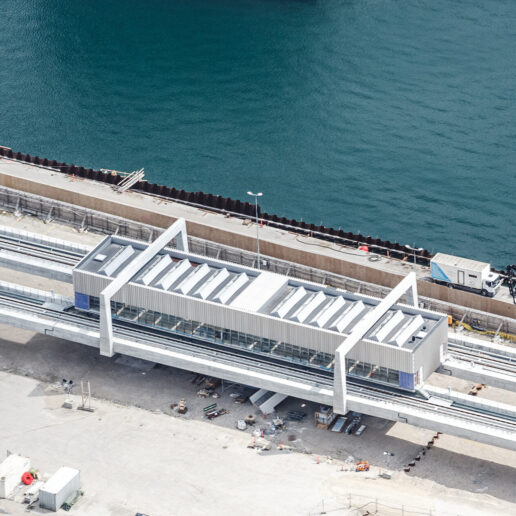

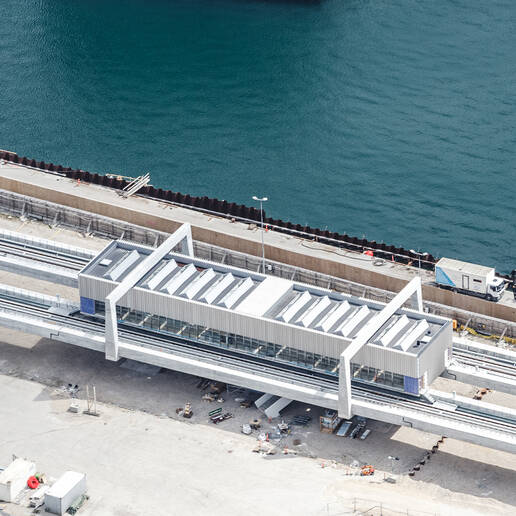

Cobe and Arup have designed two metro stations, both located in The Inner Nordhavn, Nordhavn Station and Orientkaj Station. The new metro line opens in March 2020.

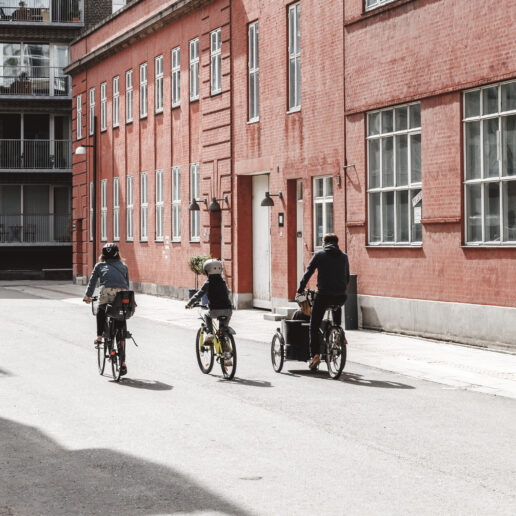

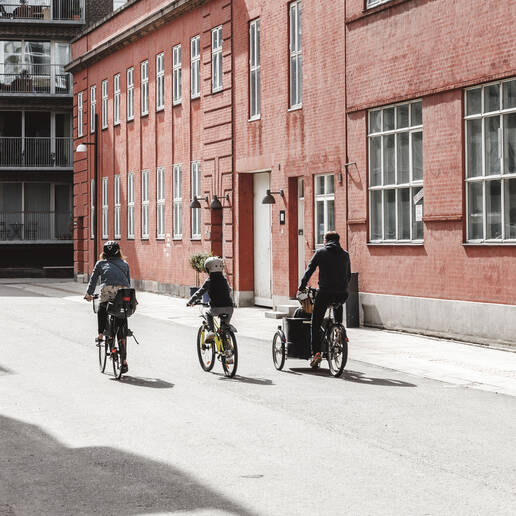

cobe nordhavn houses bikes

The blue city – surrounded and intersected by water.

The industrial docks will be excavated further, and new canals will be added, continuing the idiom of the existing basins.

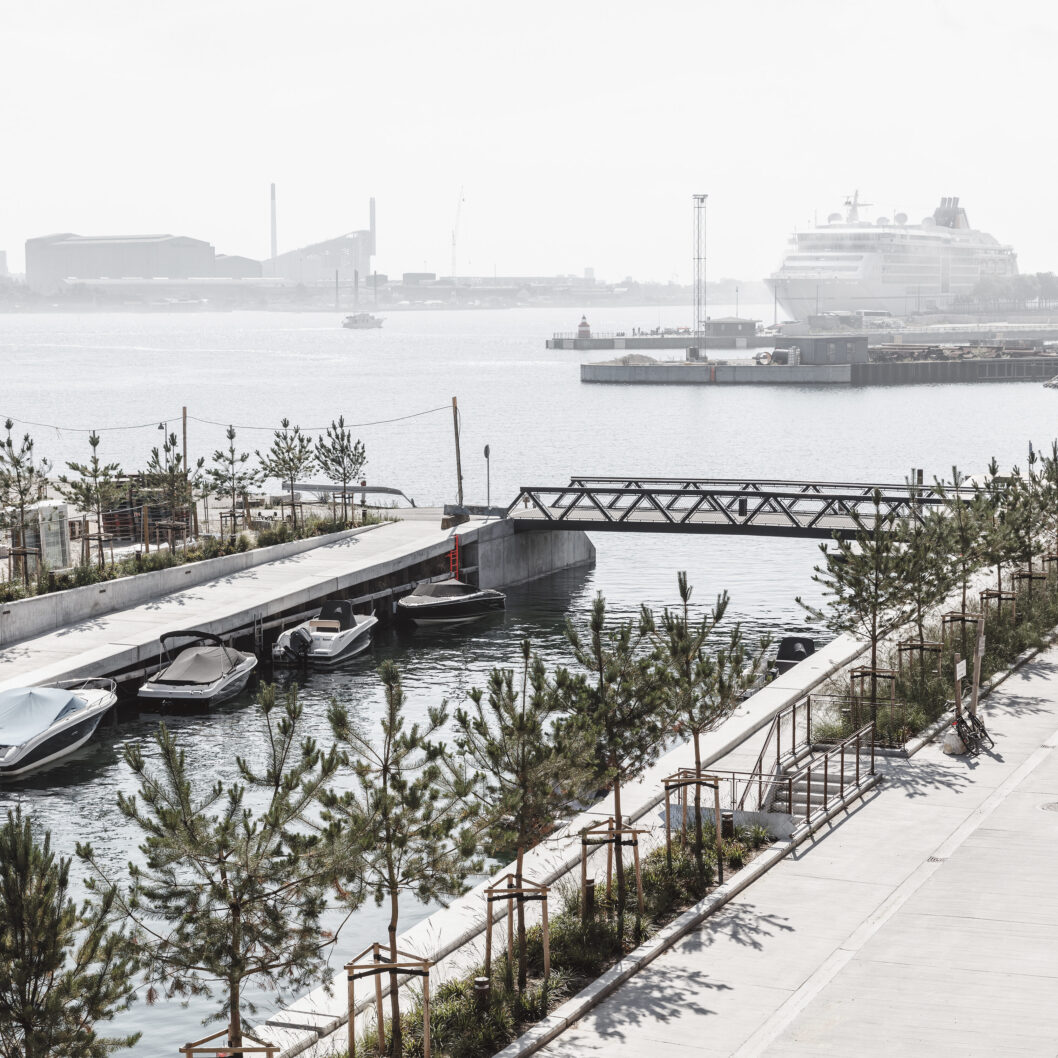

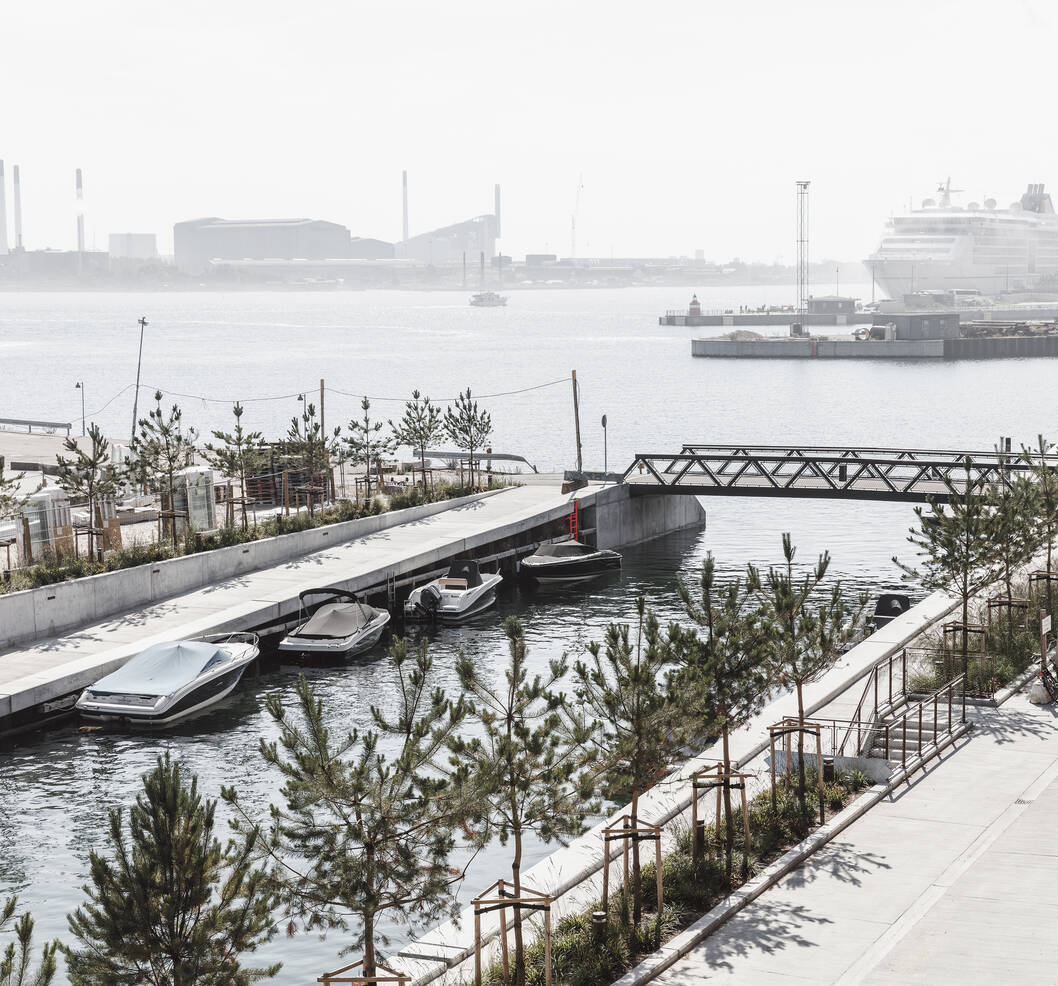

cobe nordhavn boats trees
cobe nordhavn diagram

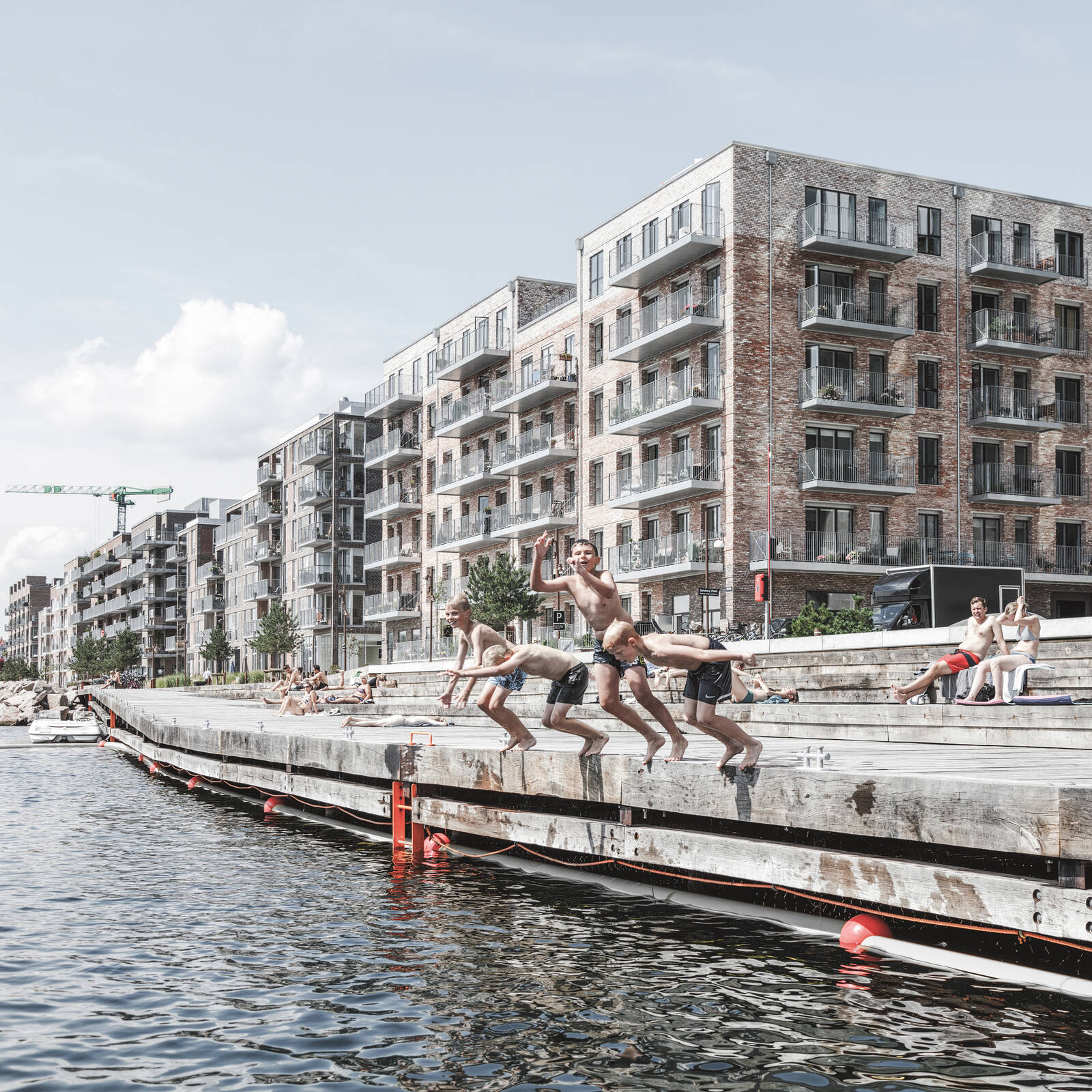

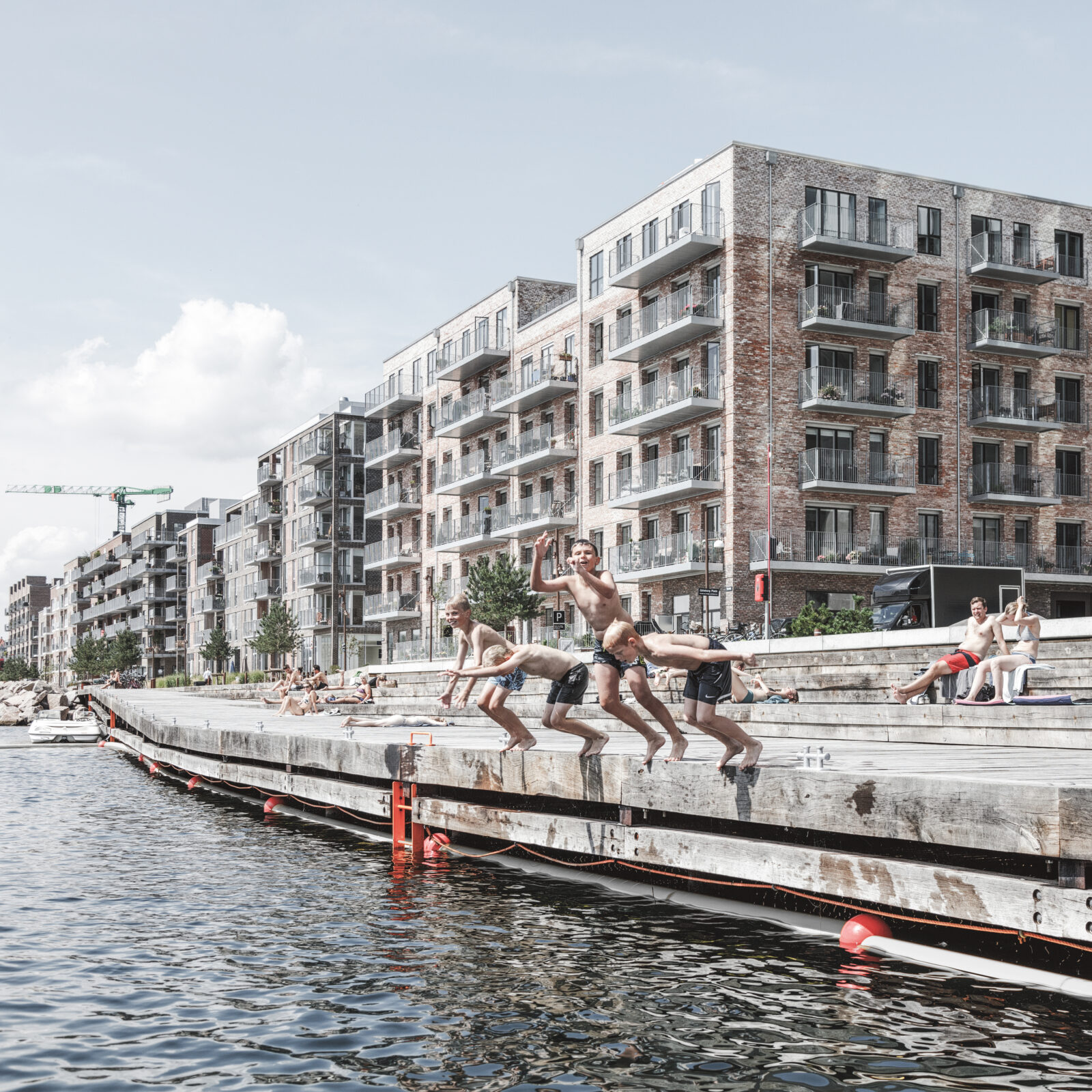

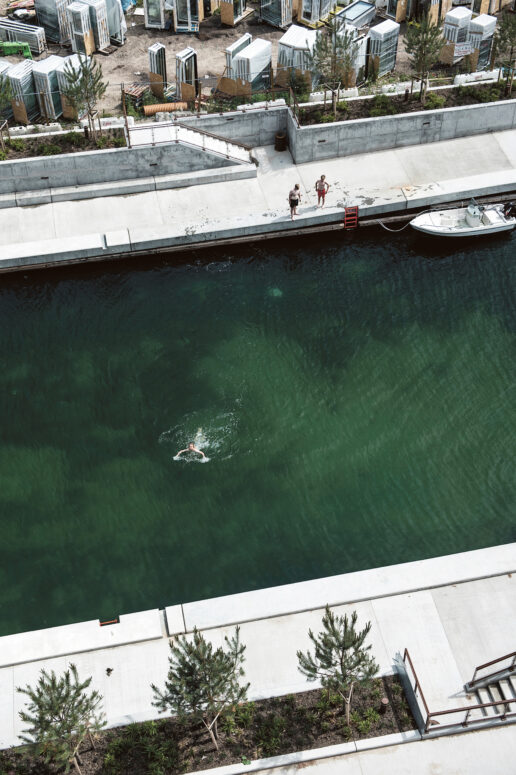

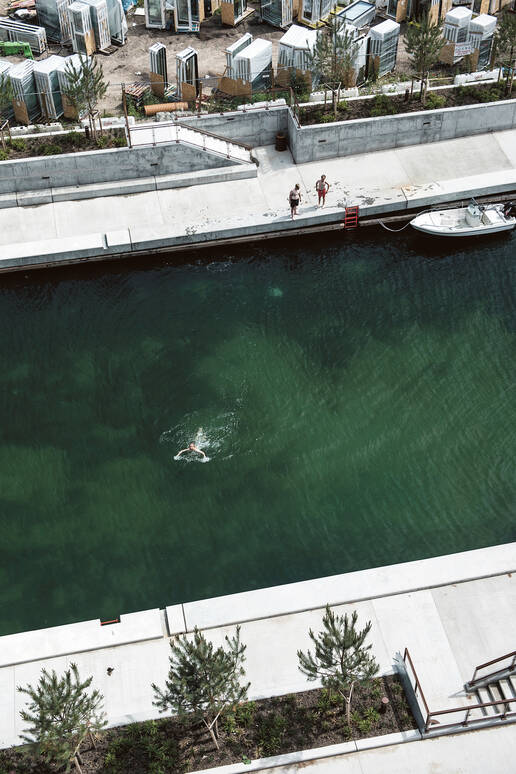

cobe nordhavn swimmers
cobe nordhavn children

The urban green – a network of green areas, promenades and public spaces.

The large public spaces will create reference points, pocket parks will offer recreational hideouts, and narrow green edge zones along the buildings will enrich the urban environment.

cobe nordhavn children

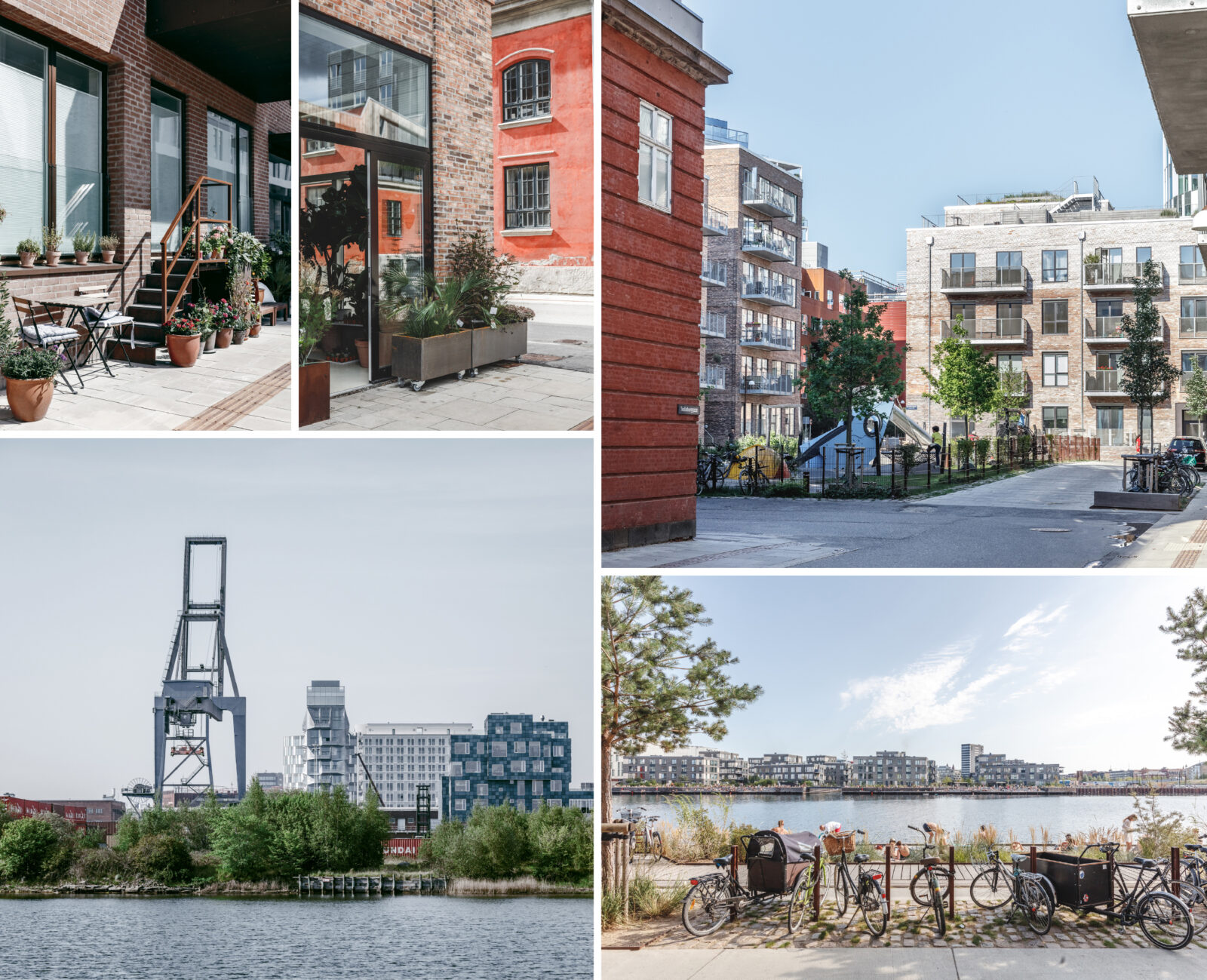

cobe nordhavn collage

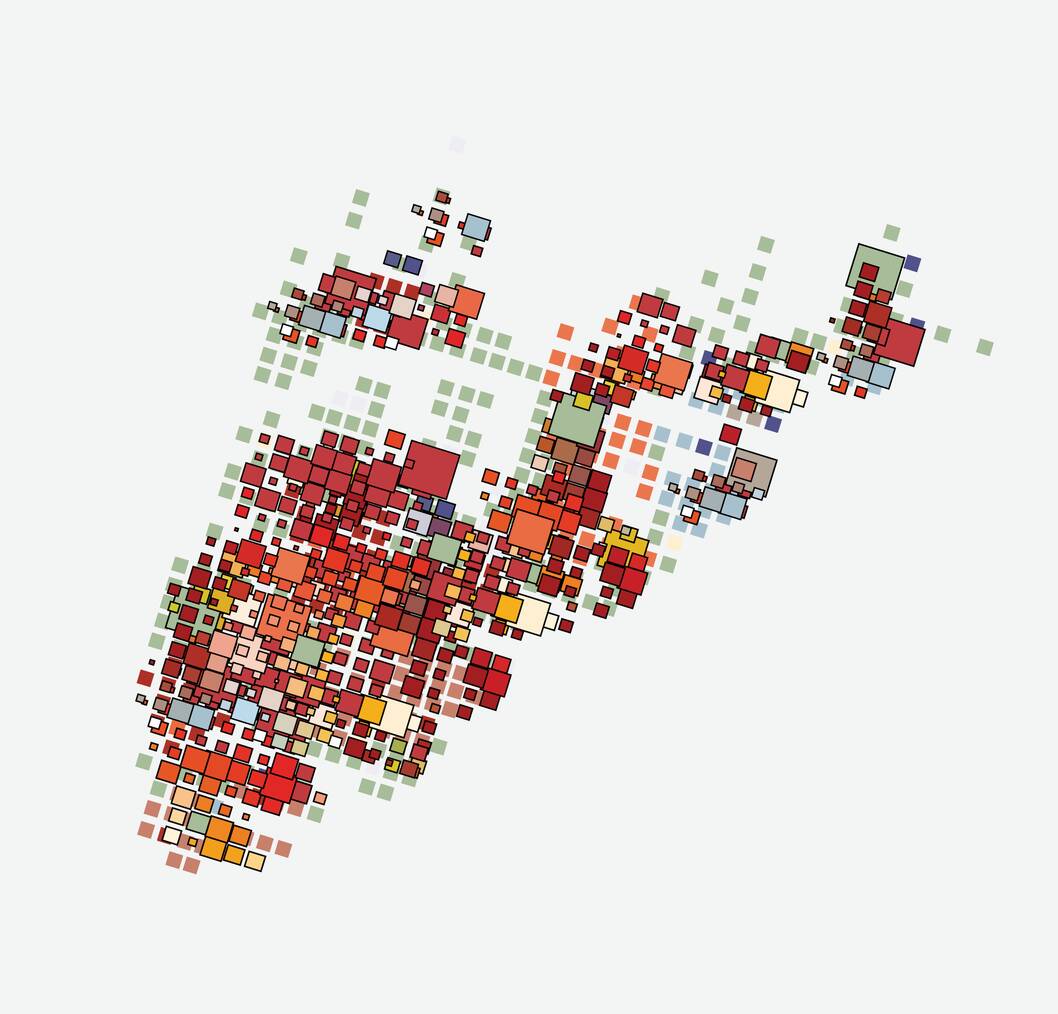

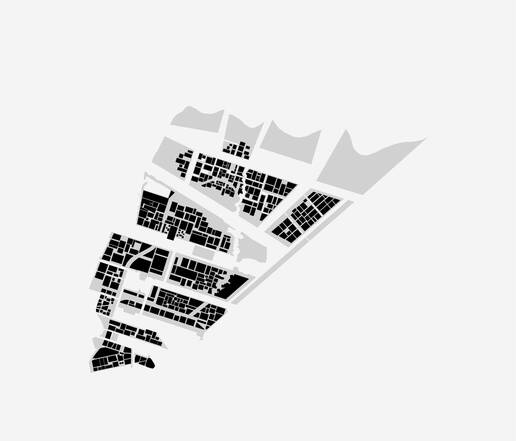

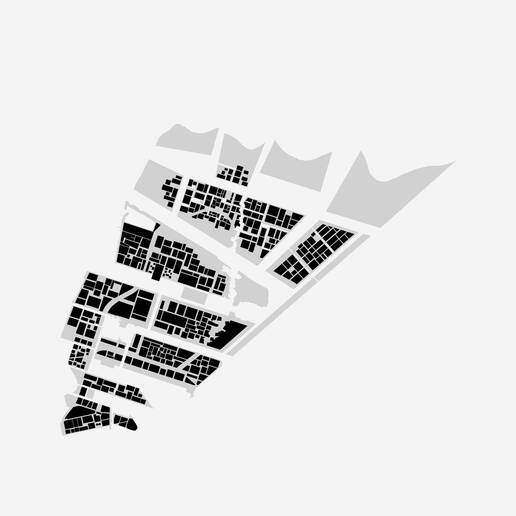

The intelligent grid – a dynamic principle of development.

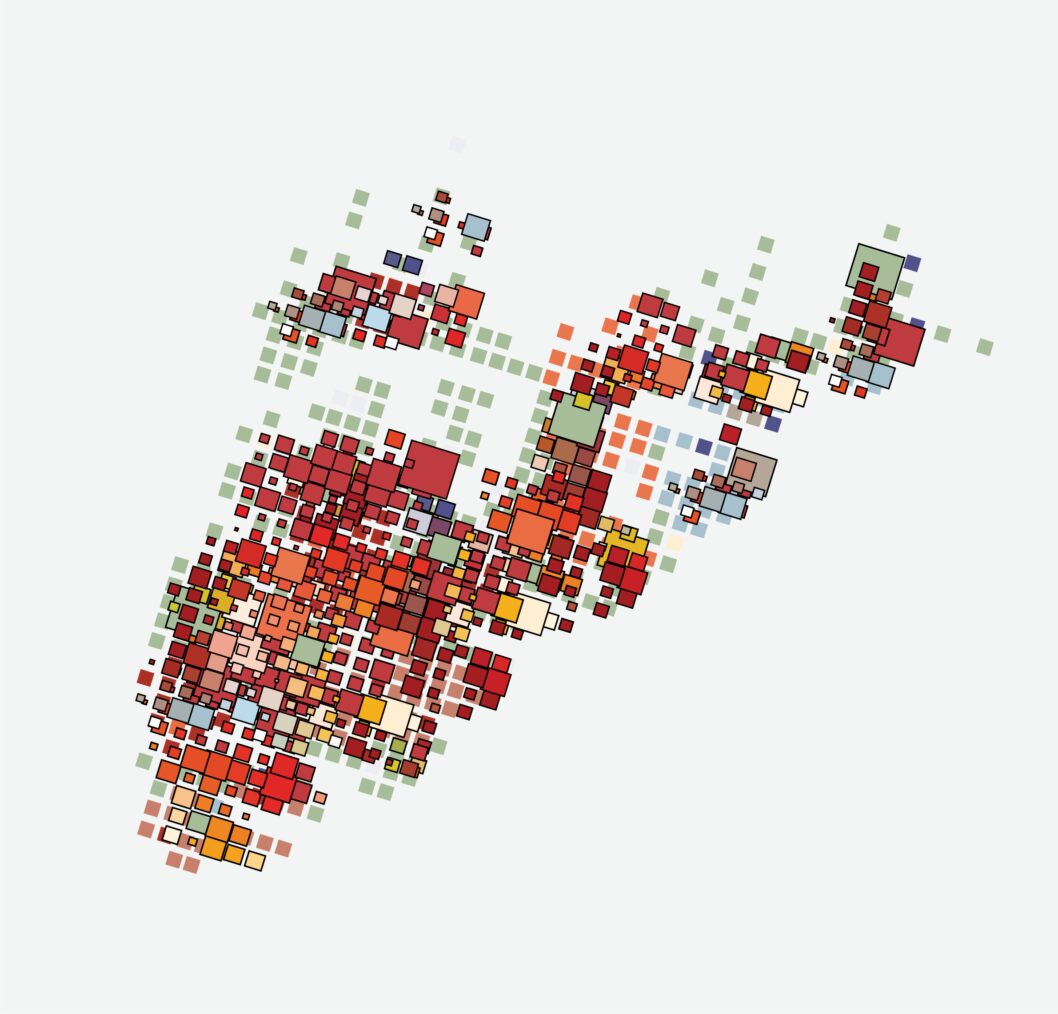

The islets in Nordhavn will be divided into lots. Nordhavn will be a neighborhood that offers the best aspects of the open city and the dense city, with towers as well as small-scale family housing, shops, offices and room for culture and sports.

cobe nordhavn diagram
cobe nordhavn diagram

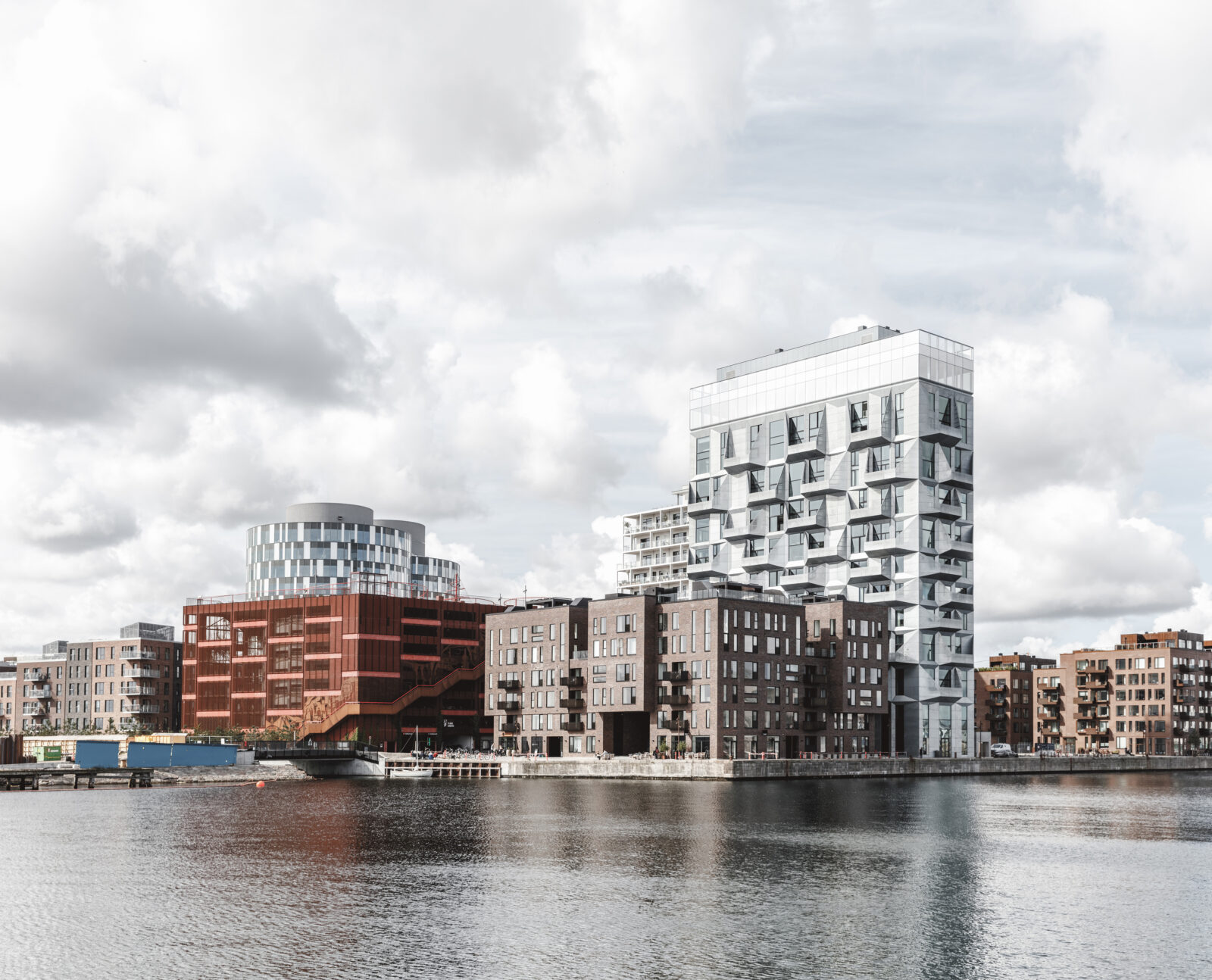

cobe nordhavn exterior silo

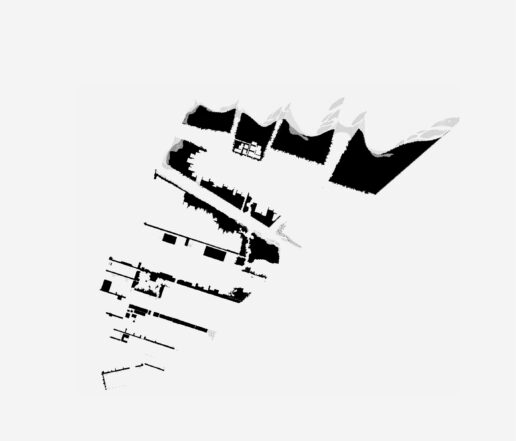

Situated in an area exposed to the elements, the urban grid is dimensioned and organized to create attractive urban spaces with maximum sun and minimum wind exposure.

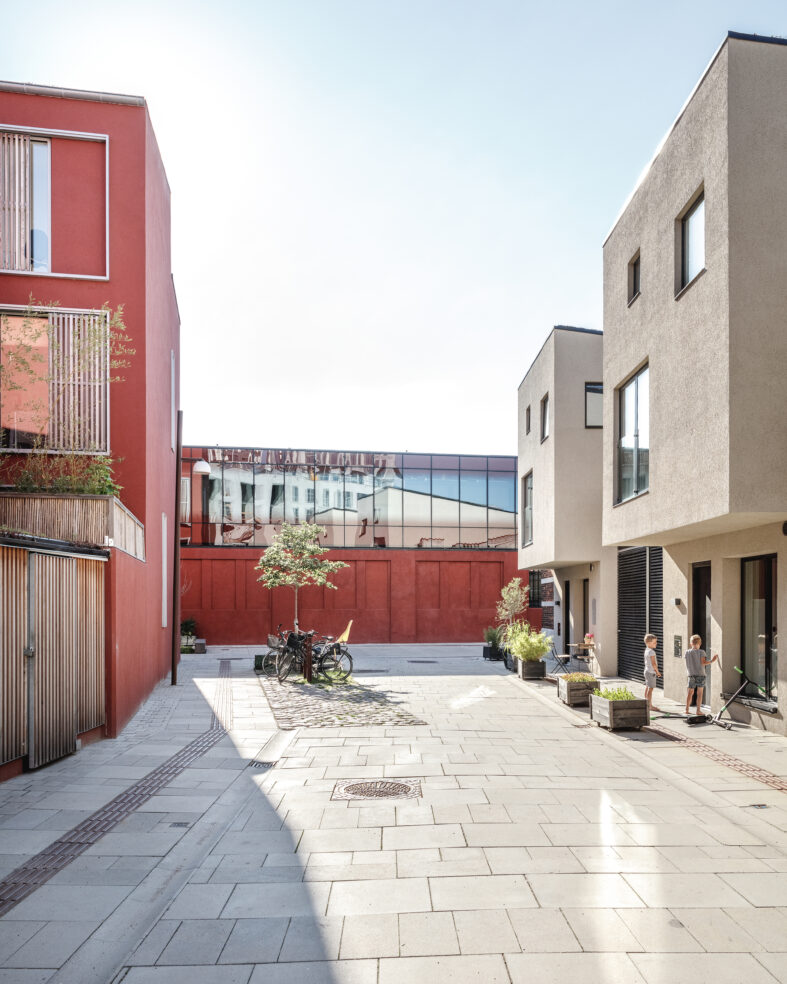

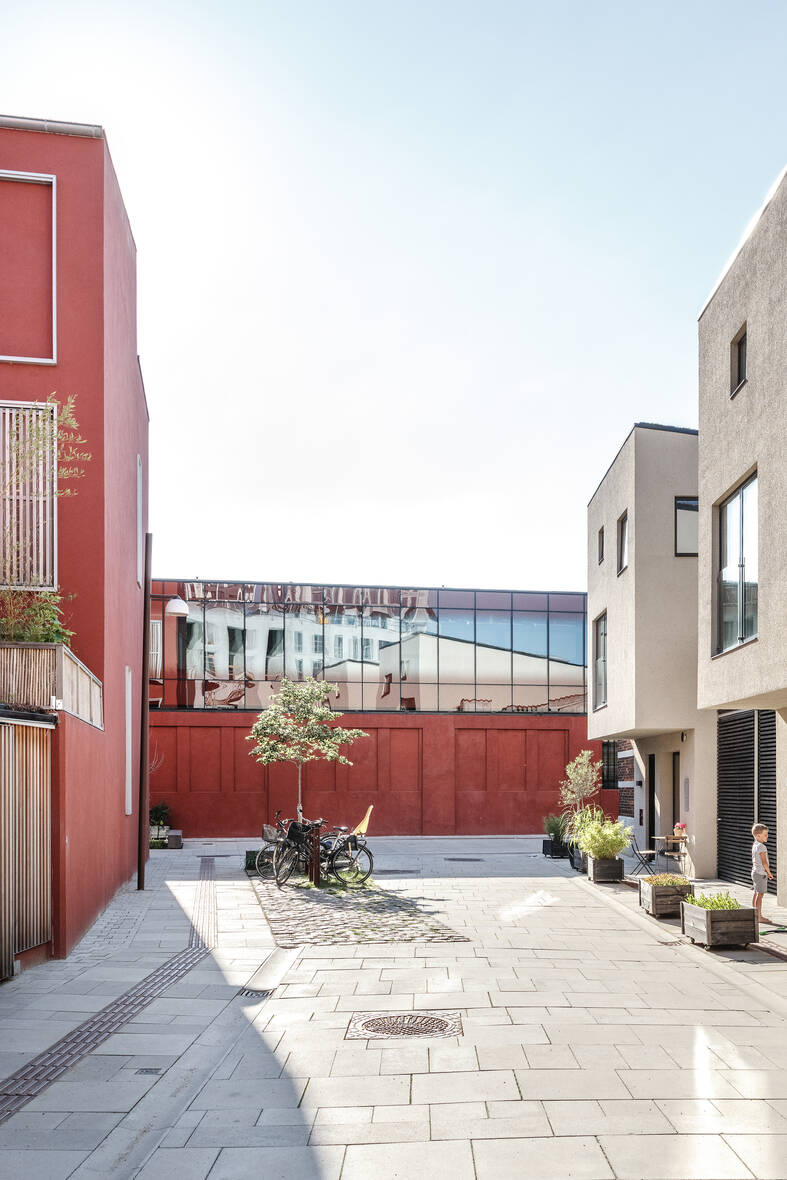

cobe nordhavn red houses

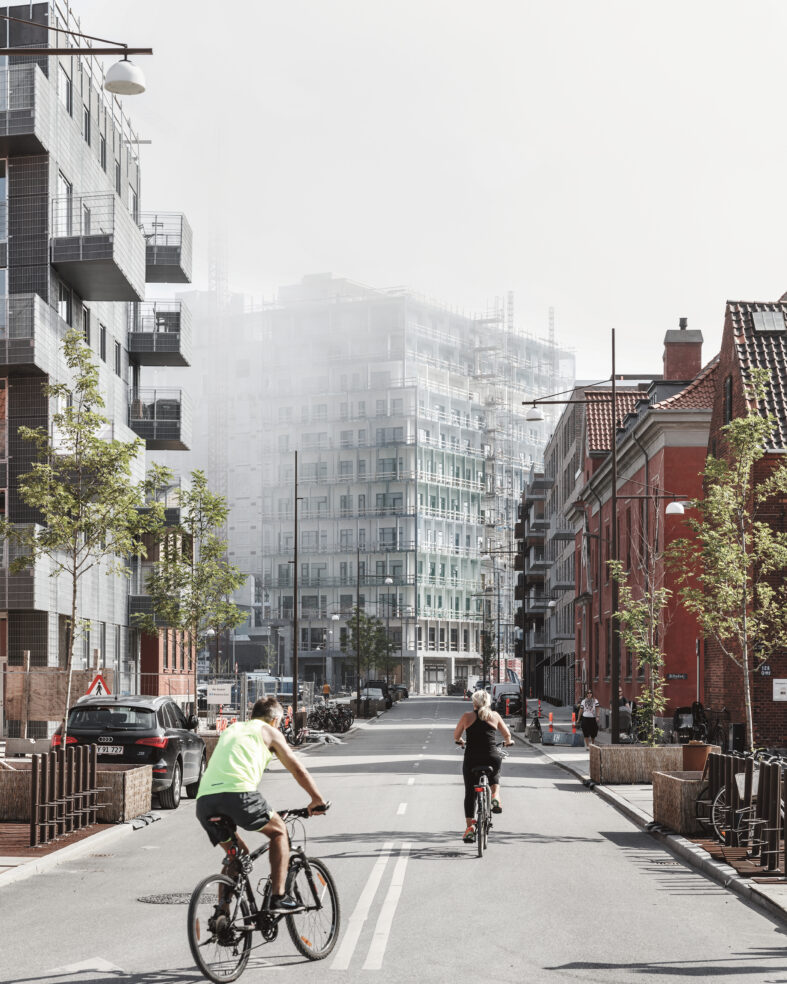

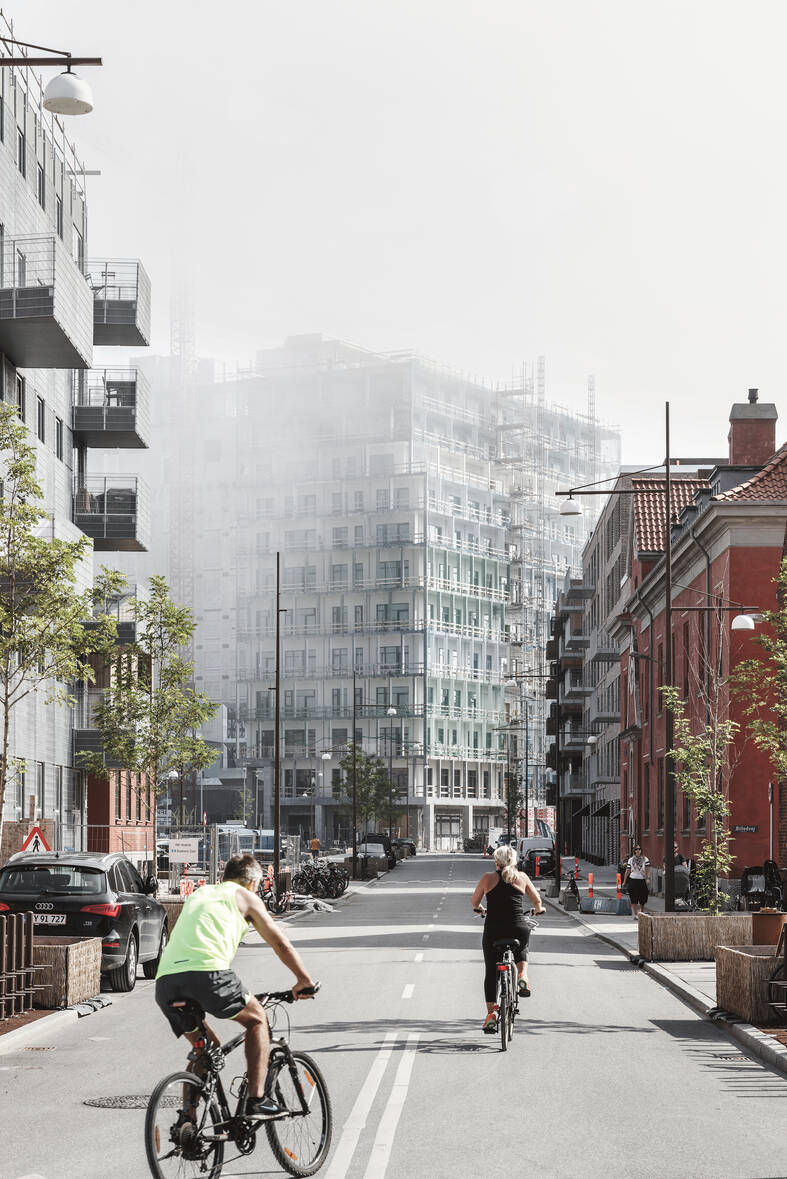

cobe nordhavn bikes fog

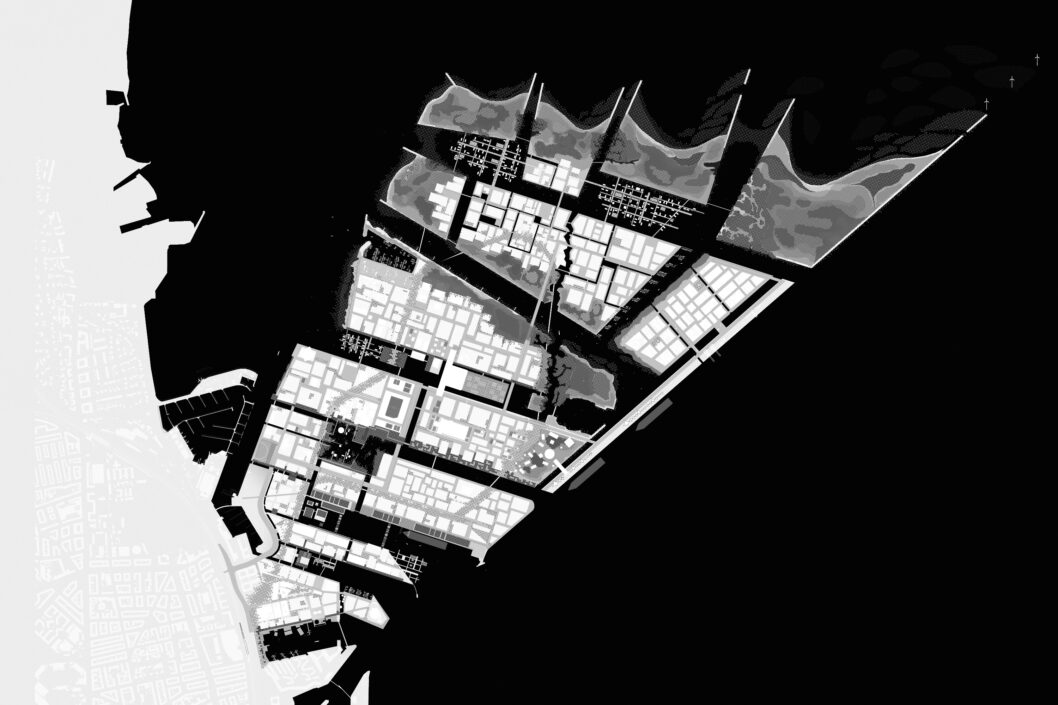

Extra-large: The city of islets can be developed one islet at a time, leaving room for unpredicted needs and preserving the ability to respond to the challenges of the given time. This vision is a tool and a set of principles for development during the years to come.

cobe nordhavn diagram

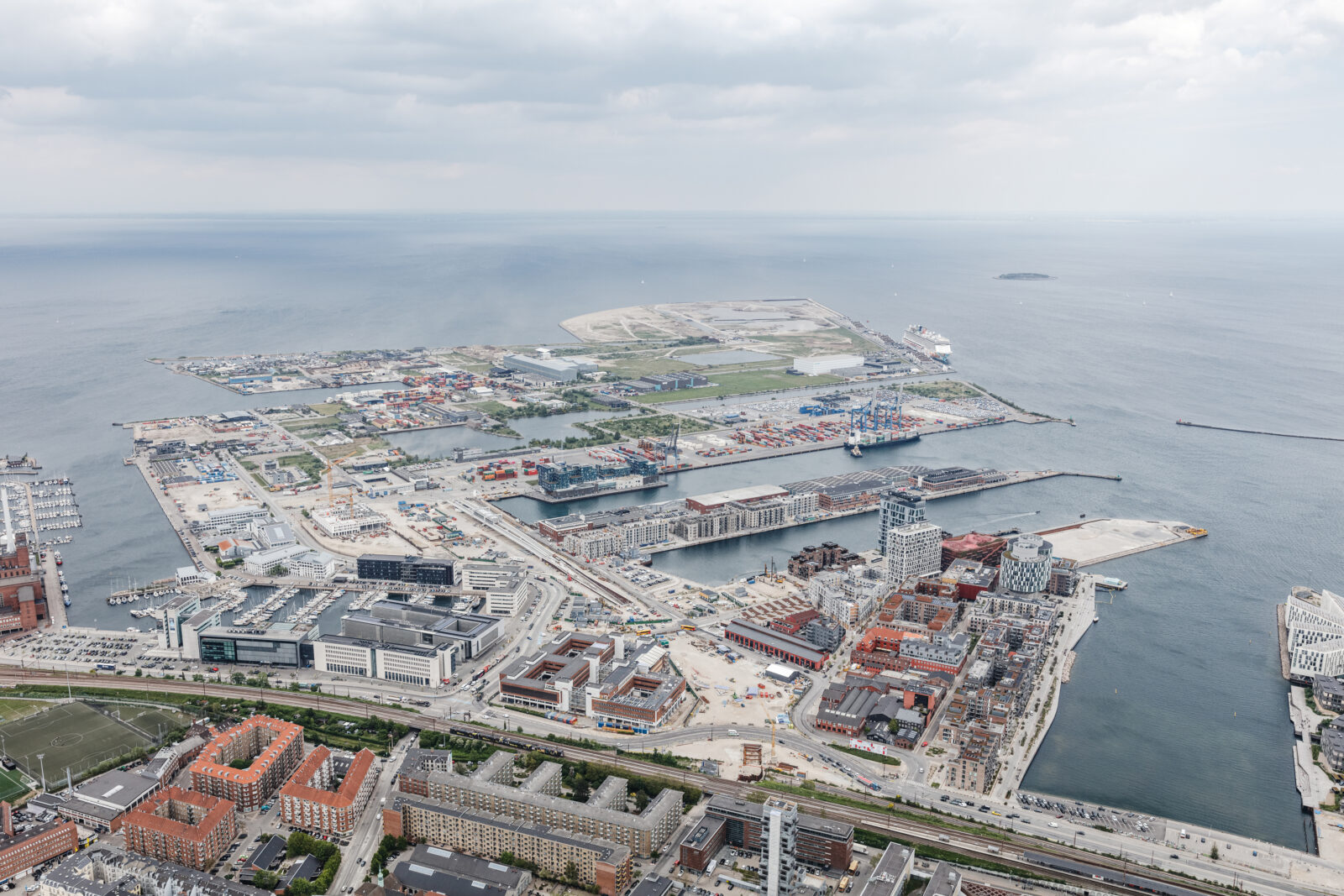

cobe nordhavn exterior sea

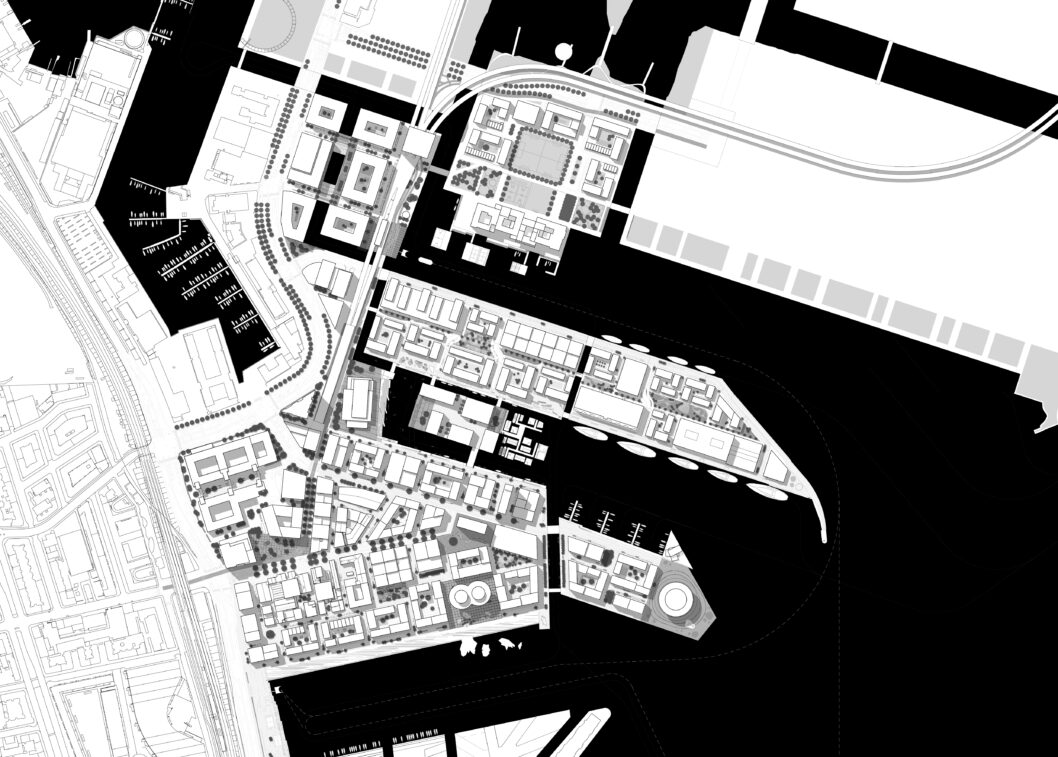

Large: The local plan for inner Nordhavn defines the building structure and opportunities during the first phase of the development, dividing the buildings into small units and creating intimate urban spaces and proximity to the water from all building plots.

cobe nordhavn diagram

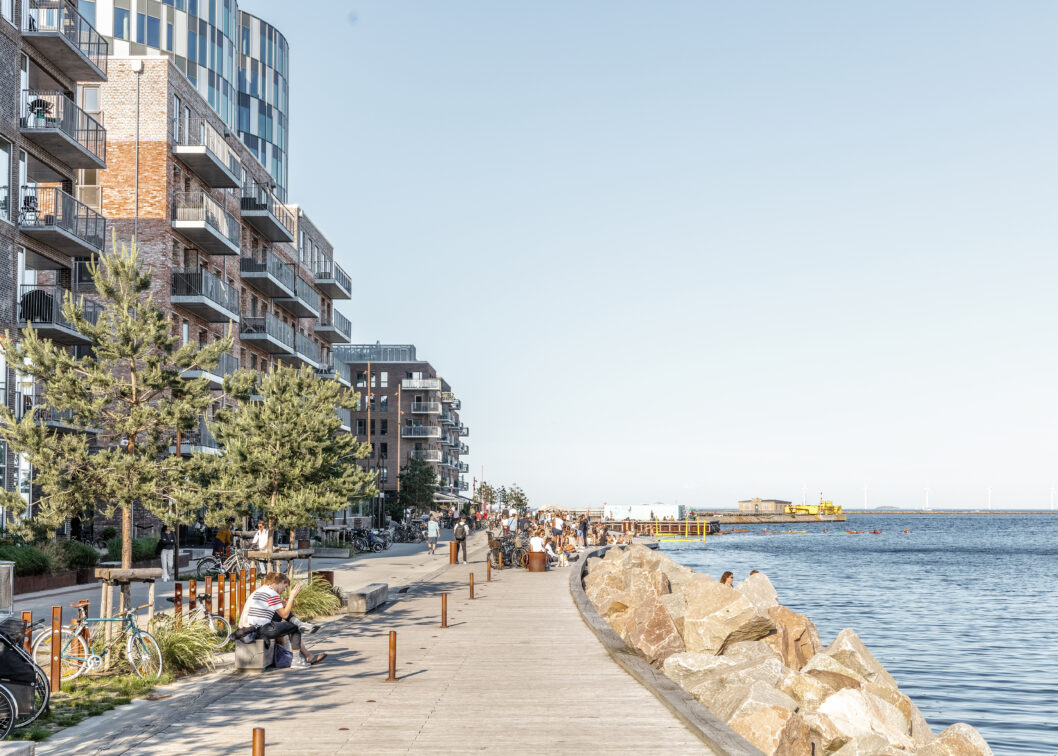

cobe nordhavn exterior

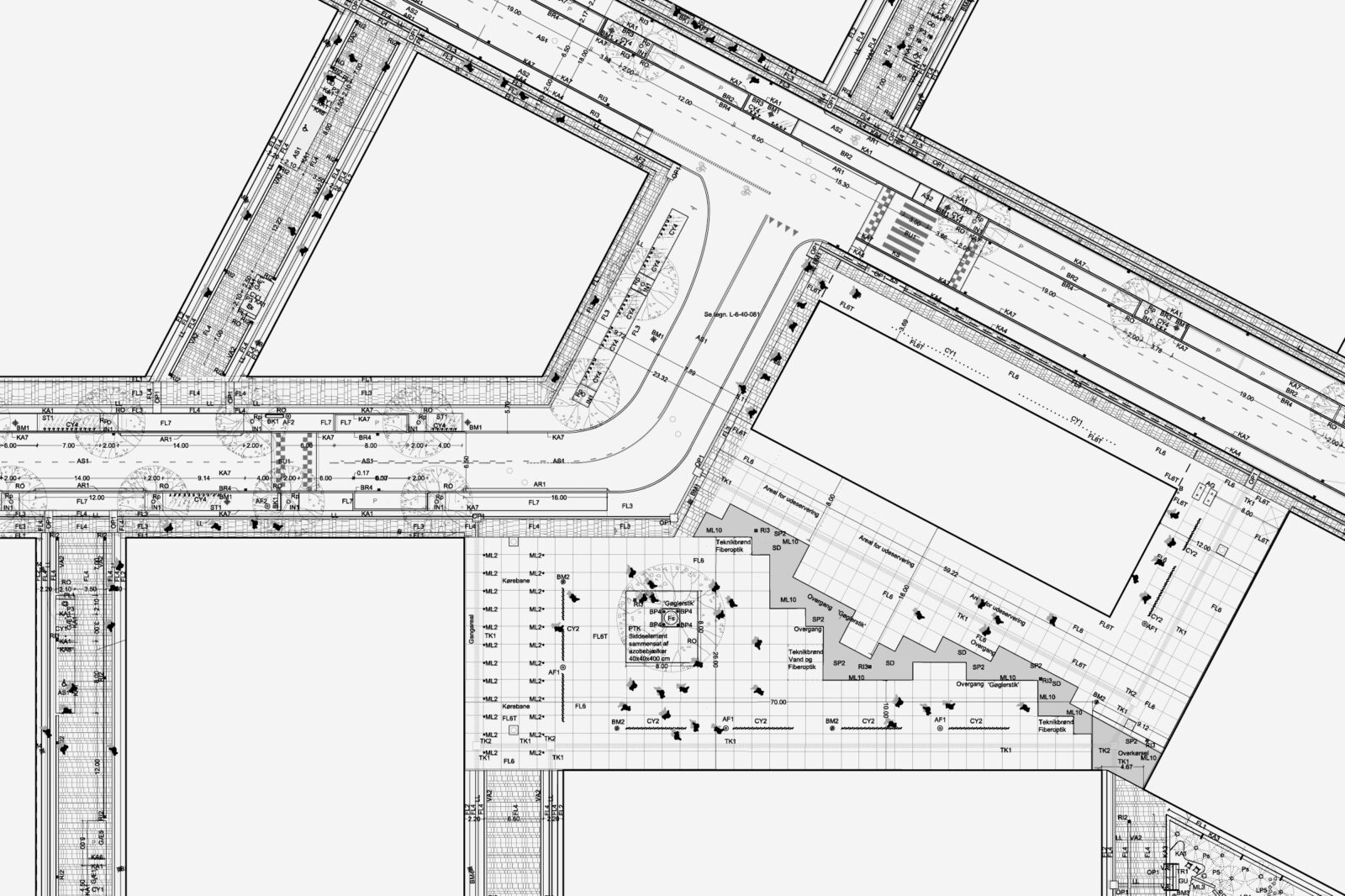

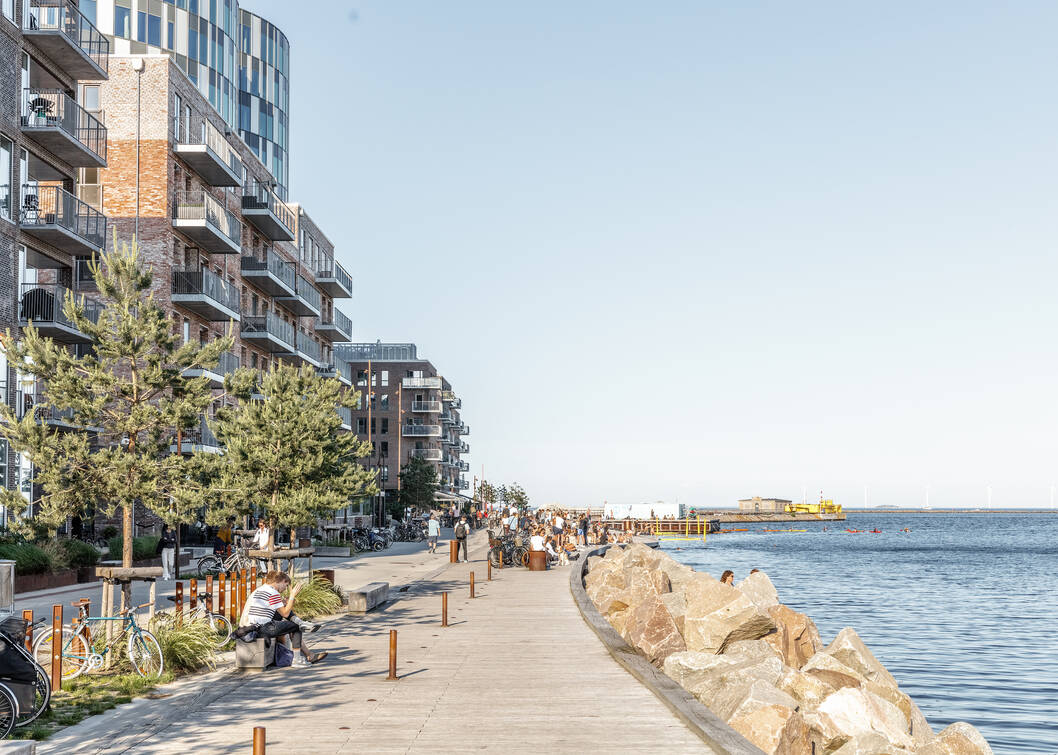

Medium – from vision to detail: During the first development phase – Inner Nordhavn – the vision is coming alive. The streets and urban spaces have been designed and constructed as intimate and pedestrian-friendly environments.

cobe nordhavn diagram
cobe nordhavn exterior

Location: Copenhagen, Denmark

Client: CPH City & Port Development

Program: Masterplan for new city district in former industrial harbour area, including development plan, district plans, design of public spaces, streetscapes and promenades, landscaping, bicycle infrastructure and metro stations

Size: 3.6m m²

Year: First prize in competition 2008, on-going, under construction

Collaborators: Sleth, Polyform, Rambøll

Certifications: DGNB Platinum

Team: Alberte Danvig, Andreas Jørgensen, Ben Goss, Caroline Richardt Beck, Dan Stubbergaard, Daniel Braat Carlsen, David Boss Jessen, Erlend Bolstad, Iben Marie Borbye Pedersen, Io Maria Andersen Schønherr, Jeppe Bonne Olsen, Johanne Barfred, Johanne Holmsberg, Karl Love Sverud, Karoline Liedtke, Kathrin Du Hamel, Kenn Andersen, Laura Diestel, Lauren Taylor Heaton, Liv Moodie, Louise Flach de Neergaard, Lucie Lorencová, Mads Birgens Kristensen, Maj Wiwe, Martin Stenberg, Matilda Andersson, Merete Kinnerup Andersen, Michala Kaja Krebs, Natalie Georg Jensen, Ole Storjohann, Rasmus Hjortshøj, Rasmus Lassen, Rune Boserup Jacobsen, Sigrid Marie Poulsen, Sonia Bom, Steffen Ommundsen, Stig Anton Nielsen, Stine Bærentzen, Stine Sonne, Søren Schaumburg Jensen, Tabea Treier, Thea Gasseholm, Thomas Hobbs, Tonny Jensen, Vanessa Miriam Carlow.

Photographer: Rasmus Hjortshøj - COAST
