Orientkaj and Nordhavn Metro Stations

cobe metro exterior cobe metro exterior
Celebrating the
redeveloped
docklands

Year: First prize in competition 2013, completed 2020

Client: Metroselskabet

Program: Two metro stations, one above-ground and one underground, and tunnel

Size: Nordhavn station platform: 44 × 7 meters, Orientkaj station Platform: 44 × 9 meters

The Nordhavn metro line extension unlocks the potential for the redevelopment of Copenhagen’s northern docklands, one of the largest urban regeneration projects in northern Europe.

The two stations possess distinct visual characteristics that reflect the local communities they serve. Tracing the outline of a shipping container, the overground Orientkaj Station celebrates the large scale volumes and brutalist features of the dockland’s industrial past, but opens up to reveal a more gentle, human focused detailing on the inside. The underground Nordhavn Station borrows from the Cityringen tradition, with the distinctive red cladding of transfer stations.

cobe metro diagram

The comprehensive Copenhagen metro network is the coming years expanding with a stronger north-south connection from Nordhavn to Ny Ellebjerg.

cobe metro diagram

The first two stations in Nordhavn are now completed.

Nordhavn is a city of sustainable mobility, where it is easier to walk, bike or use public transport, than it is to drive your own car. The two metro stations unlock the potential of this new Copenhagen city district enabling more efficient and sustainable transport between the individual neighbourhoods, and to the rest of Copenhagen, while adding a new chapter to the story of the Copenhagen harbour front

cobe metro exterior station

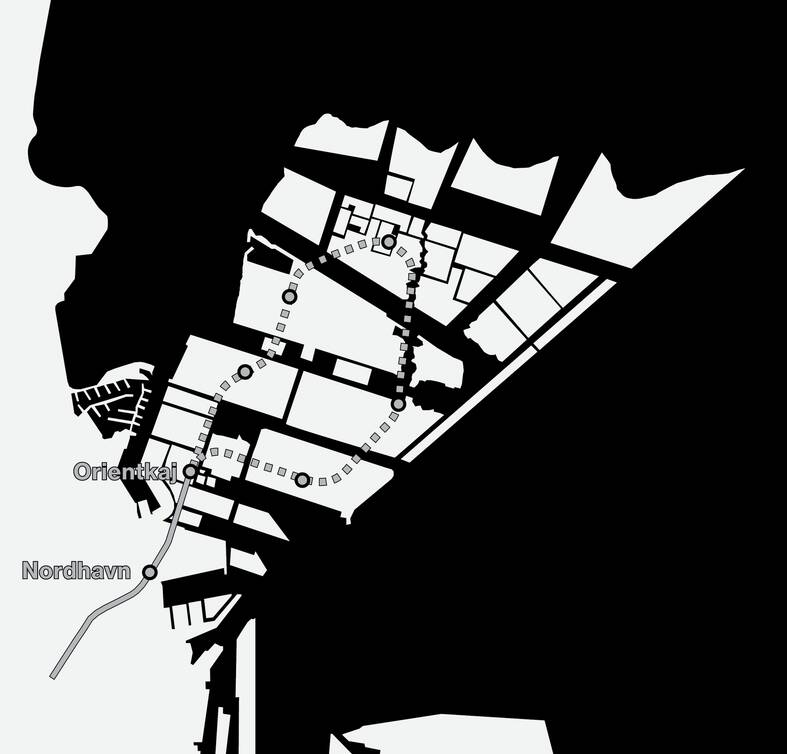

The new metro line is a part of the green loop through Nordhavn connecting the various neighborhoods with public transportation, bike lanes and green urban spaces.

cobe metro diagram

In Nordhavn it is easier to walk, cycle or use public transport than travelling by car.

cobe metro diagram

The green loop

The complete Nordhavn masterplan was designed by Cobe and implementation is still ongoing. Read more about Nordhavn.

Harbor scale meets
human detailing

The first two stations on the branch out to Nordhavn is an underground station at Inner Nordhavn, the red neighborhood, and an above-ground station at Orientkaj dock, the white neighborhood.

cobe metro collage
cobe metro diagram

Orientkaj station is located in the white district at Orientkaj dock.

cobe metro diagram
cobe metro collage

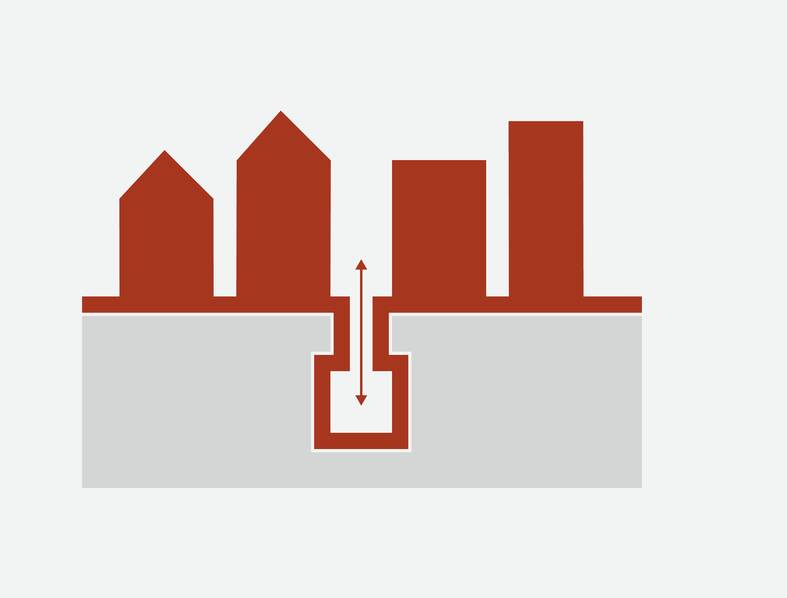

The new metro stations are an integrated part of the identity of the neighborhoods by using the same materiality - here Nordhavn Station in the red district, Inner Nordhavn.

A prototype that
makes a statement
cobe metro collage

The structures from the container harbour have been a strong identity trait in Nordhavn.

The above ground station, Orientkaj, is prepared to continue with more stations in the future development of Copenhagen’s Nordhavn. As a prototype, the station is designed to make a statement, offering a model for any future overground stations along the Nordhavn metro extension.

cobe metro exterior

Views from the station platform have also been a key design consideration. On a clear day, passengers can look across the Øresund into Sweden.

cobe metro detail
cobe metro exterior
cobe metro detail
cobe metro detail

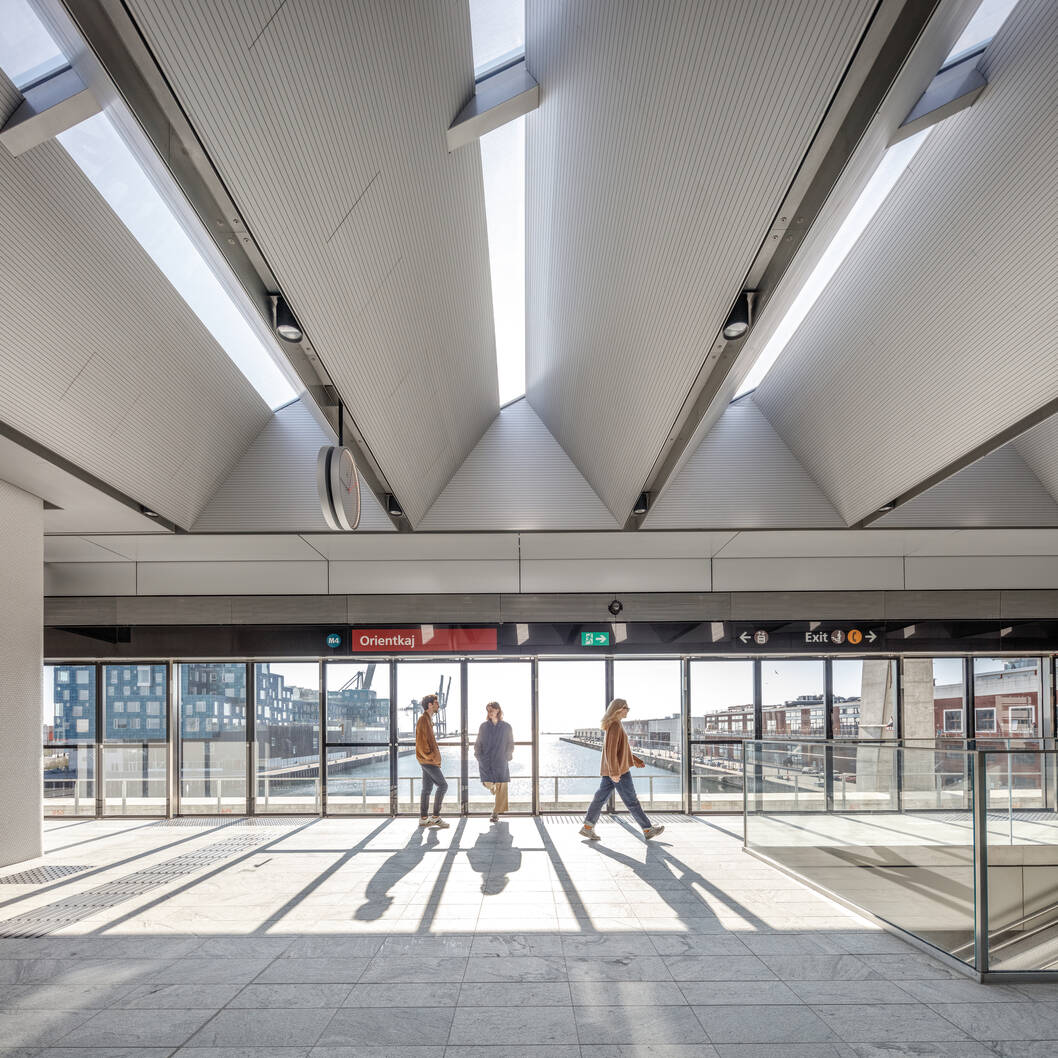

Inspired by the existing industrial structures in Nordhavn, the station’s design derives from the massive crains lifting the containers from the ground. Designed as a glass, concrete and aluminium box, the station commandeers panoramic views over Orientkaj dock.

cobe metro detail

Two rotated, concrete staircases connect the station to the ground level. Under the station, the 33-metre long concrete spans and V-shaped piers minimise the station’s footprint while maximising the open, flexible urban space to accommodate a range of future uses, including bike lanes and a public urban space along the waterfront.

cobe metro diagram

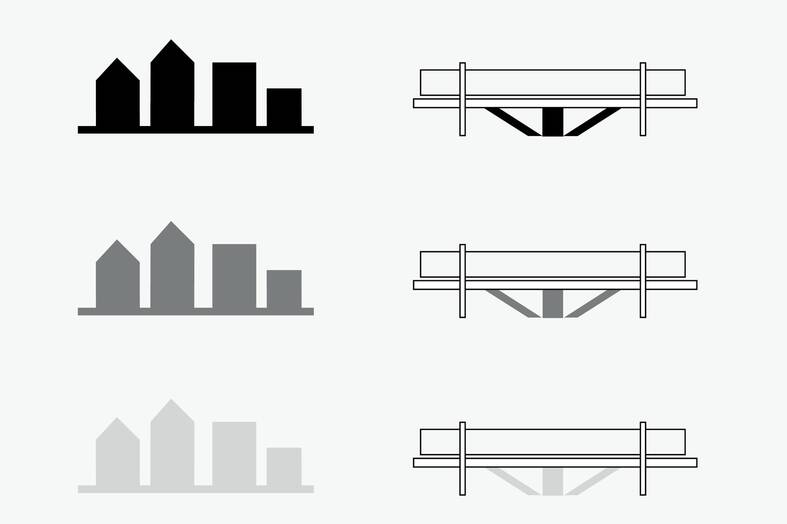

The staircases work as an urban connector and are individualy designed for every station through Nordhavn.

cobe metro diagram

Every station will get its own identity cladding concept connecting the staircase to its neighbourhood.

cobe metro detail

The scale of the brutalist concrete exterior is juxtaposed with polished detailing inside.

cobe metro detail
cobe metro detail

White hexagonal mosaic covers the stairs and lift towers, while corners have been rounded for a softer, more human-friendly finish.

Serving a mixed use urban area with offices, transformed warehouses and new housing developments, Orientkaj station needed to be distinctive enough to become a local landmark, while blending in with the white surrounding buildings.

cobe metro detail
cobe metro detail
Design goes
underground
cobe metro diagram

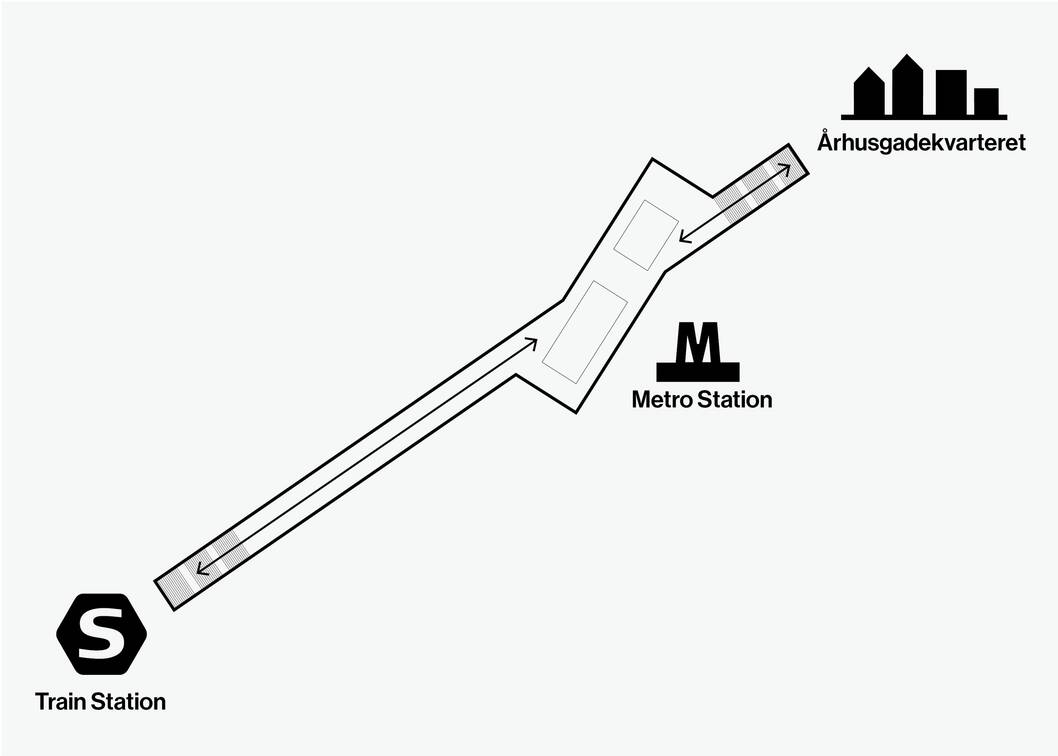

Nordhavn station is an important connection between the S-train and Inner Nordhavn.

Nordhavn station is a major connection and exchange point between the the S-train, the red neighbourhood in Inner Nordhavn as well as providing design continuity with the Cityringen metro to create a seamless travel experience for passengers travelling between the two lines.

cobe metro detail
cobe metro interior

At Nordhavn station the interior façades are clad in the red tiles characteristic of Cityringen’s interchange stations. Folded ceramic panels also provide a sense of movement, building to a great reveal in the transfer tunnel: the angled wall claddings reveal a different hue changing from white to red as passengers move through.

cobe metro diagram

The dynamic wall pavement changes colour depending on which direction you walk in - more red towards the metro station and more grey towards the exits.

cobe metro detail

Intuitive wayfinding was a key design consideration for this underground station with clear lines of sight between the underground station and the transfer tunnels, allowing users to see all the way through to the other side, enhancing the feeling of comfort and safety.

cobe metro detail

Walking towards the S-train exit

cobe metro detail

Walking towards the metro station

cobe metro detail
cobe metro detail

Location: Copenhagen, Denmark

Client: Metroselskabet

Program: Two metro stations, one above-ground and one underground, and tunnel

Size: Nordhavn station platform: 44 × 7 meters, Orientkaj station Platform: 44 × 9 meters

Year: First prize in competition 2013, completed 2020

Collaborators: Arup, RambøllArup JV, CAS JV, Metnord, Sleth, Polyform

Team: Caroline Nagel, Clement Bue Maali, Dan Stubbergaard, Jonas Hviid Mønster, Rasmus Bernard Nielsen, Søren Jeppe Sørensen

Photographer: Rasmus Hjortshøj - COAST

Additional photos: Seier+seier
